10Te SWL Constant Tension Hydraulic Drum Winch ACE 3206

For Sale Category: Offshore winches

Location: Rotterdam, the Netherlands, Europe

Equipment Quantity : 1

Make an Offer

For Sale: ACE 10t Constant Tension Hydraulic Winch + 55kW HPU (As New)
Used only once for a single project – excellent condition.

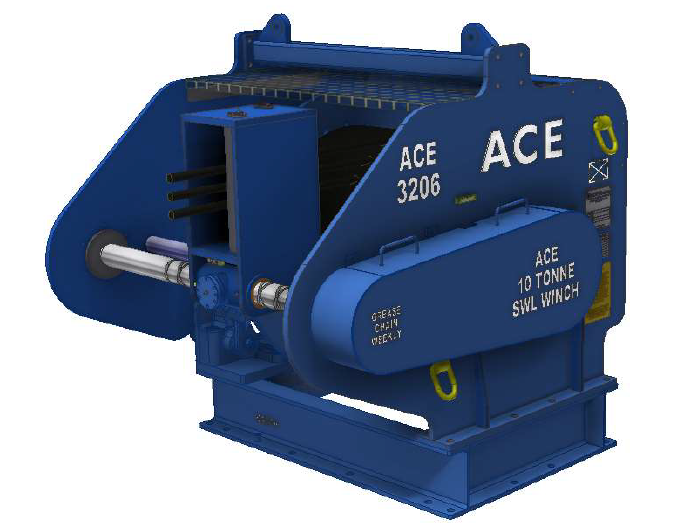

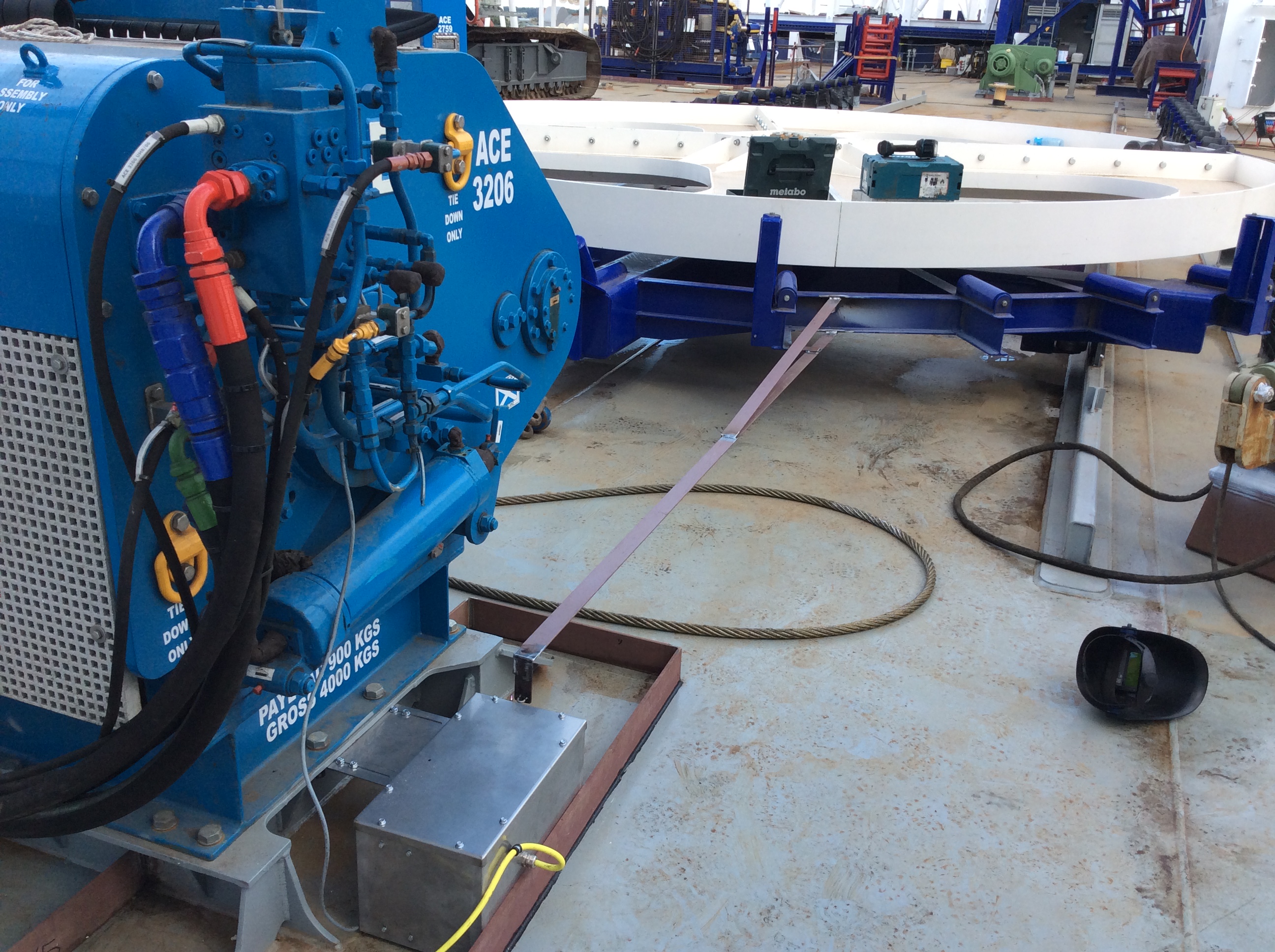

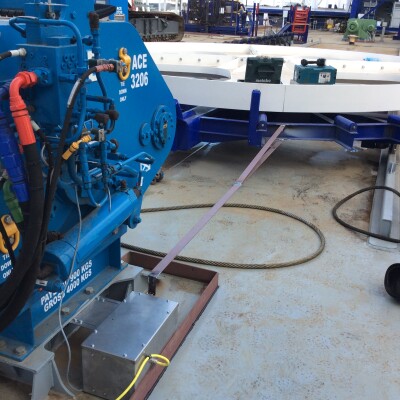

Winch Model: ACE 3206

10 tonne SWL, constant tension

Fitted with spooling gear

Driven by Hägglunds Viking 64-16300 radial piston motor

Wire rope capacity: 200 m (28 mm)

Weight approx. 3100 kg (without rope)

Dimensions: 1623 × 1563 × 1553 mm

CE marked, DNV approved brake

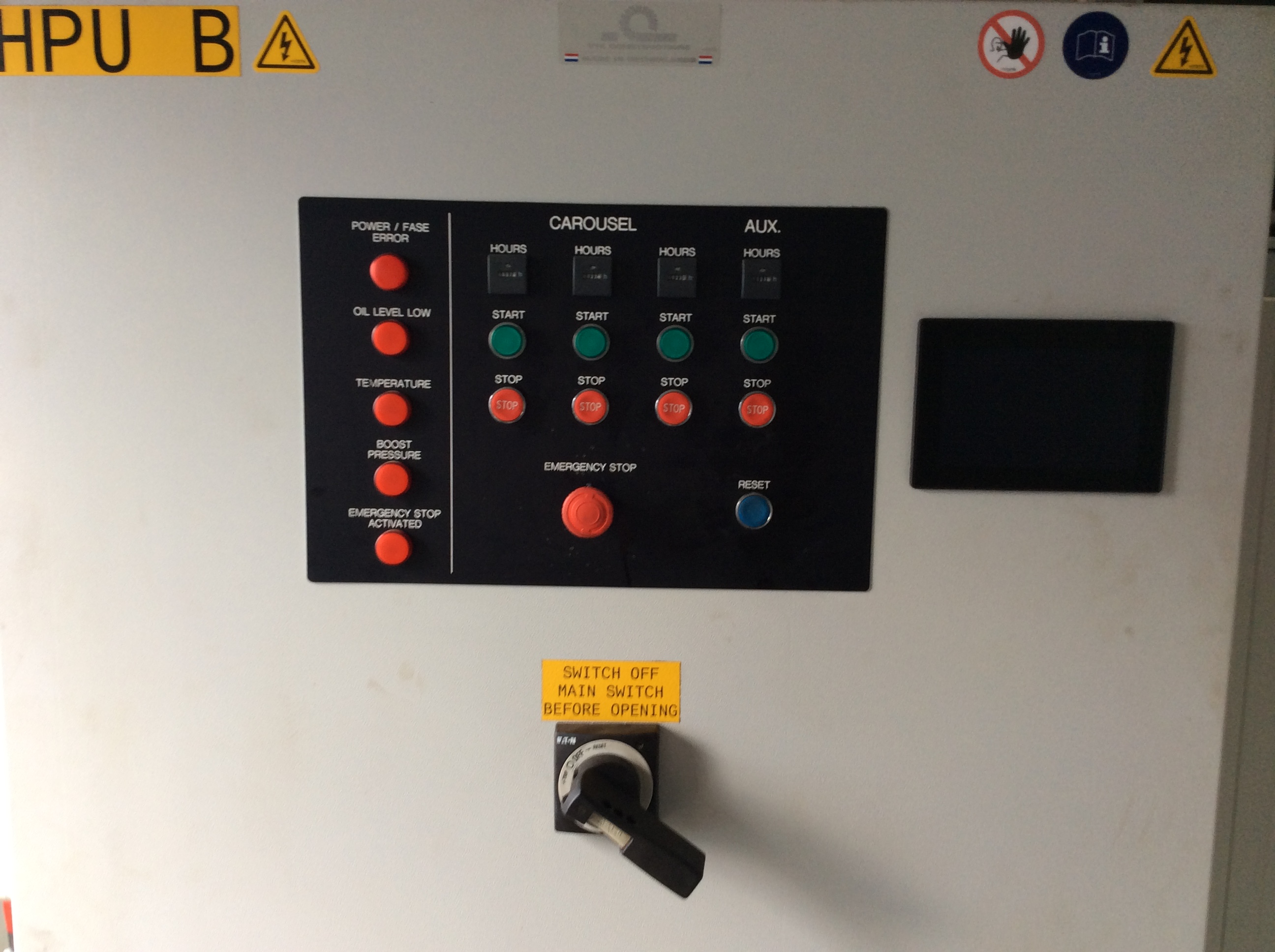

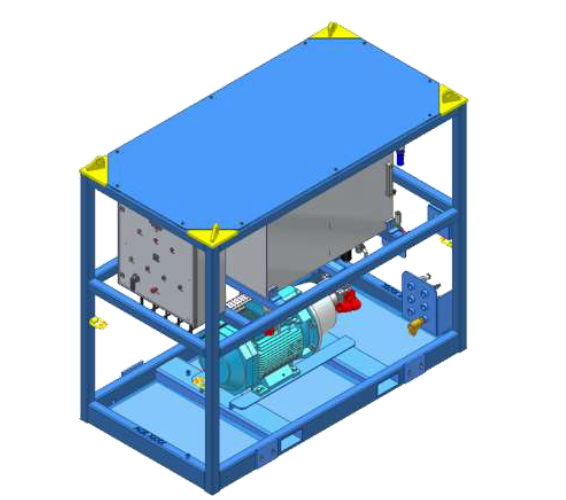

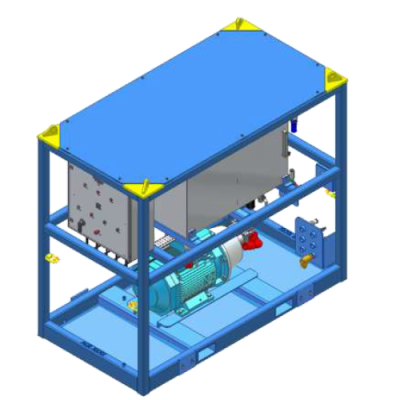

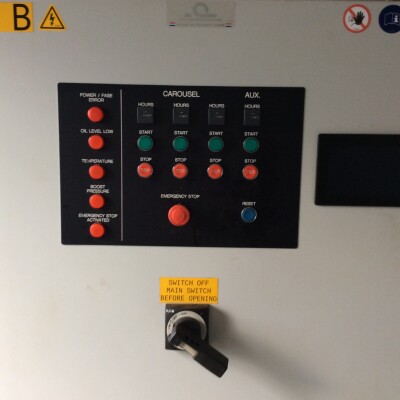

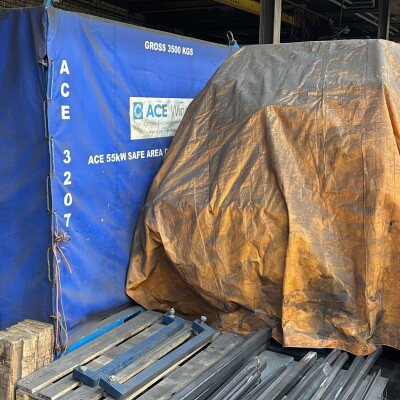

HPU Model: ACE 3207

55 kW ABB electric motor

Kawasaki hydraulic pump (80cc/rev)

Max flow: 142 L/min @ 210 Bar

Open loop system, safe area rated

Oil reservoir: 500L

Weight approx. 3500 kg

Dimensions: 2500 × 1350 × 2200 mm

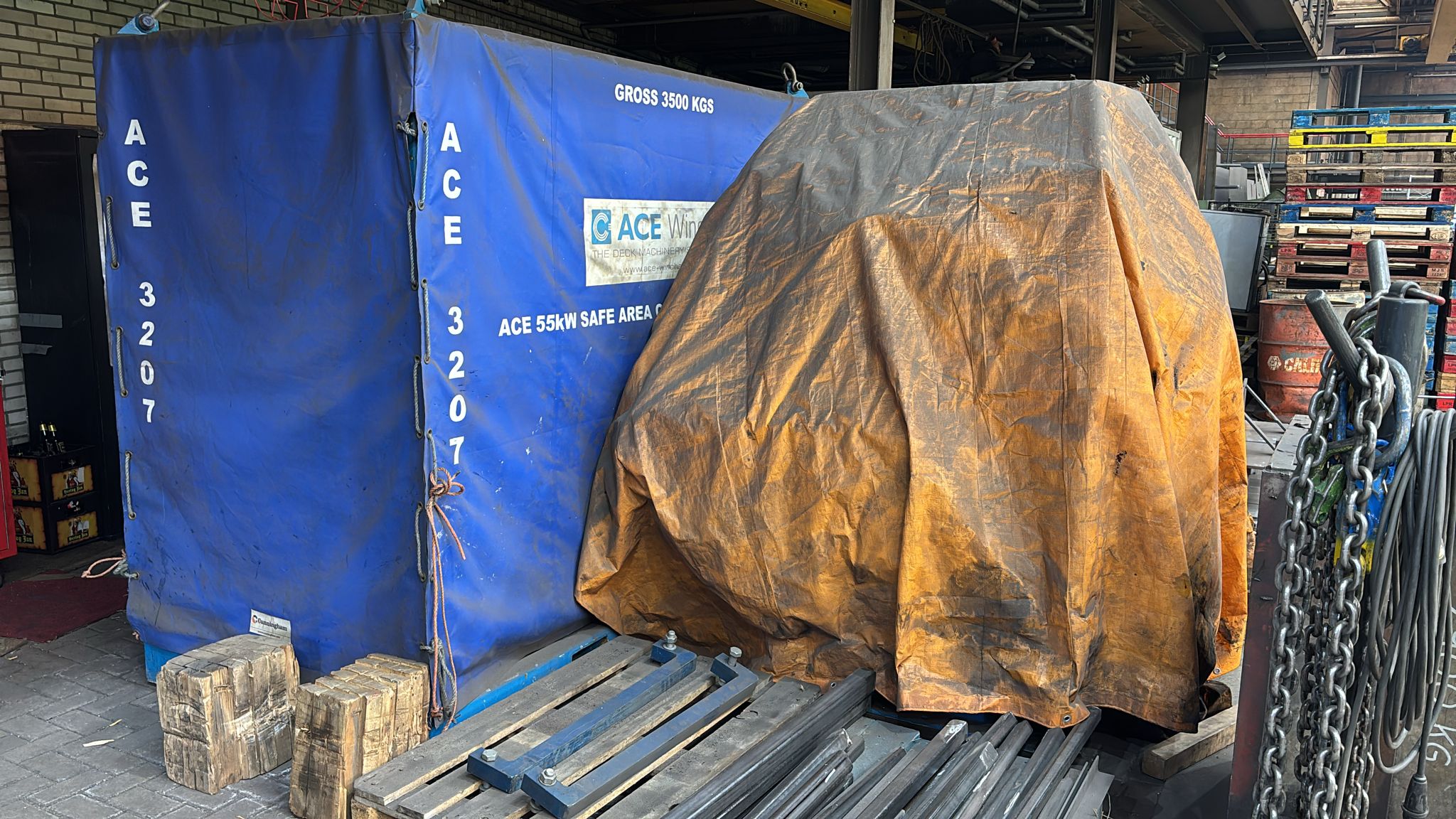

Both units stored indoors. Ready for immediate deployment.
Detailed datasheets available on request.
