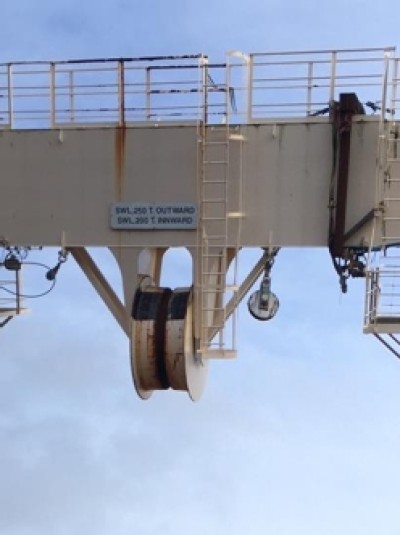

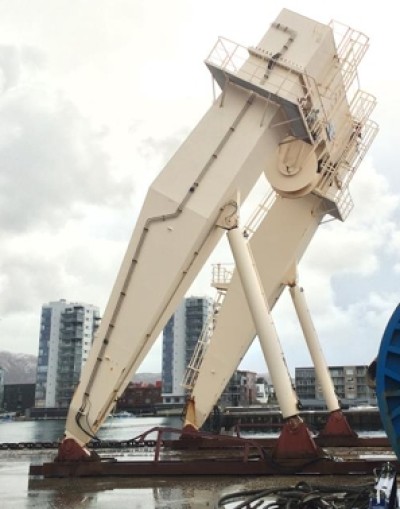

200 Ton capacity A-Frame

Capacity for internal handling 200 mT
Capacity for external handling 250 mT
Year of manufacture 1997
Manufacturer Hydralift, Norway
Overall width 14040 mm
Inside opening 8990 mm
Total height 17960 mm
Free height (vertical position) 13000 mm
Pivot inward 5000 mm
Pivot outward 8500 mm
Approx total weight 110 ton
Hydraulic pressure 250 bar
Hydraulic supply 425 l/min
Hydraulic tank 3000 liter
HPU voltage 440Volt 60 hz
Full power rating (S40%) 352 Amp
Speed full stroke 150 / 260 seconds
Sales terms “As is, where is”
