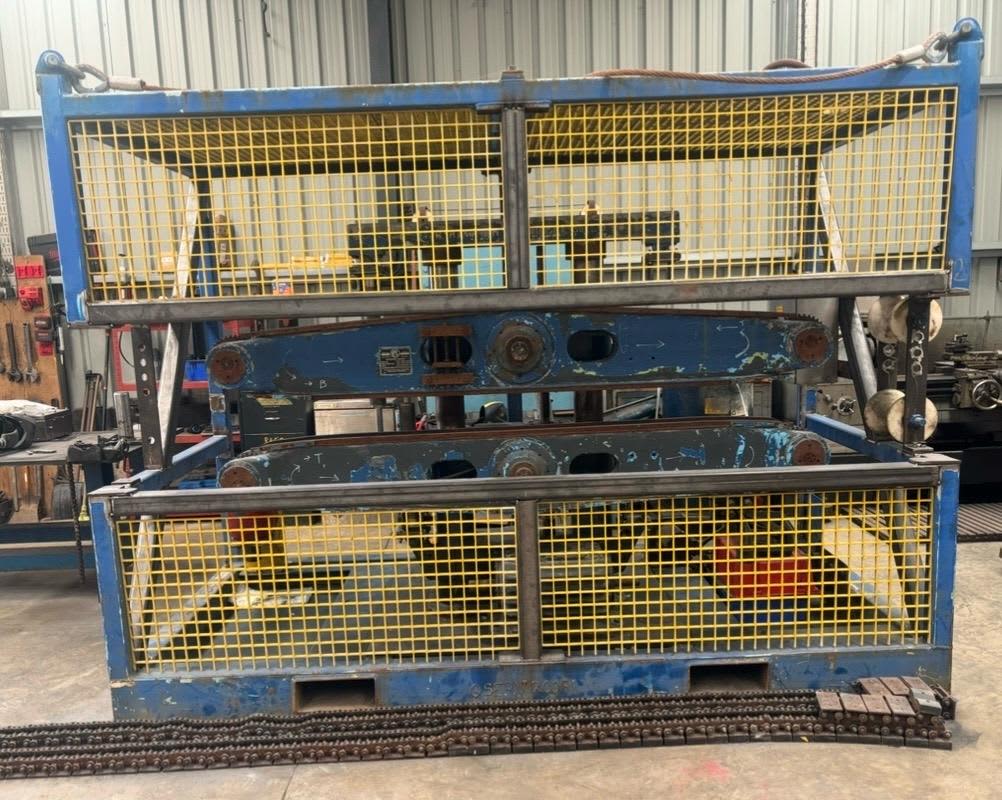

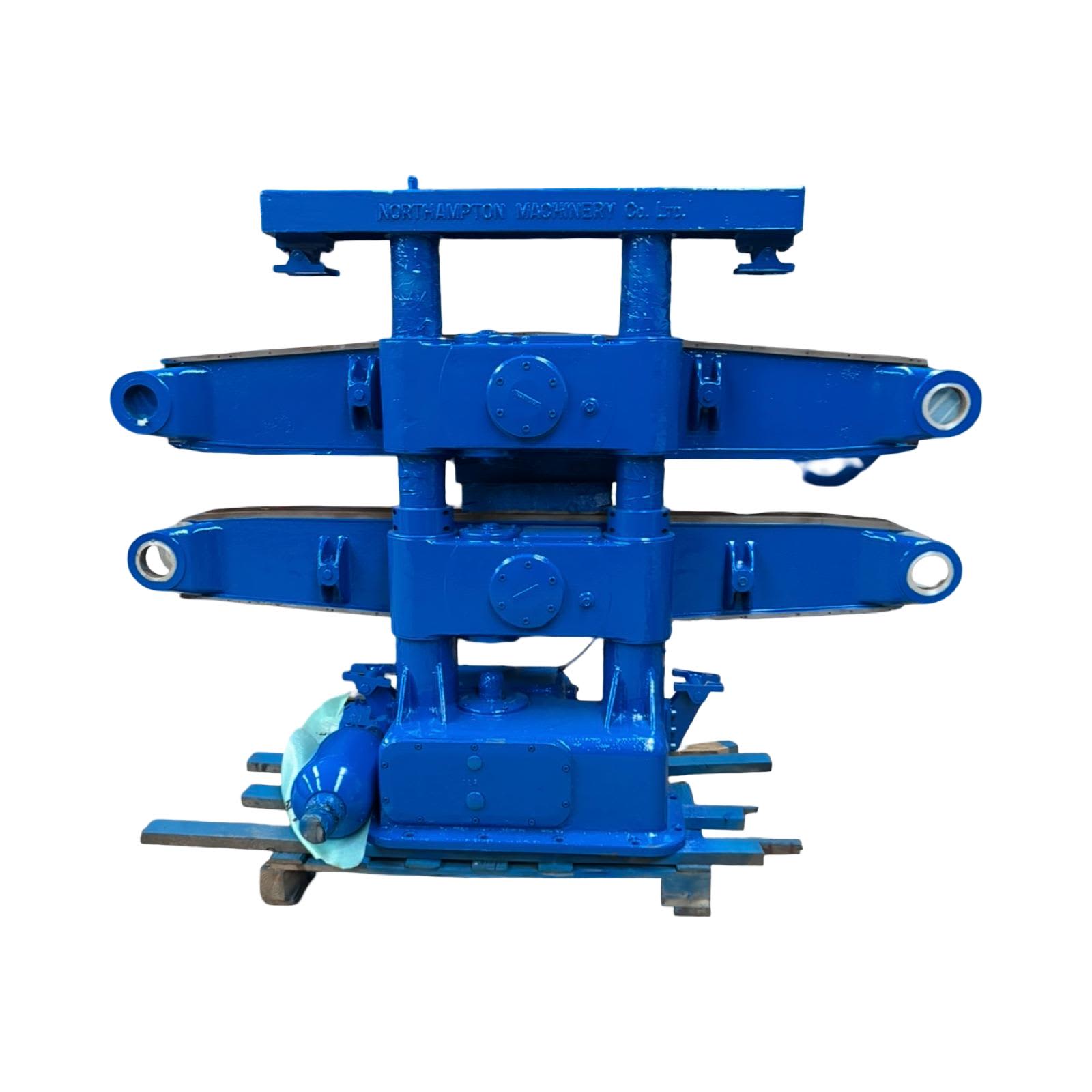

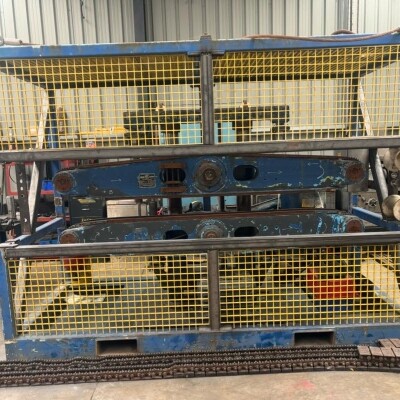

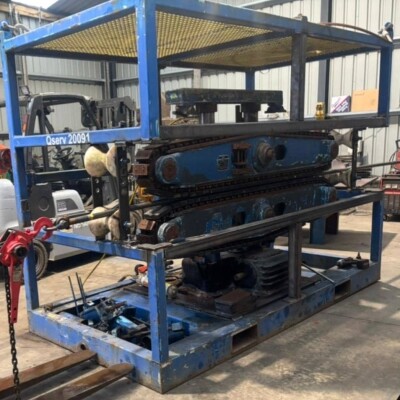

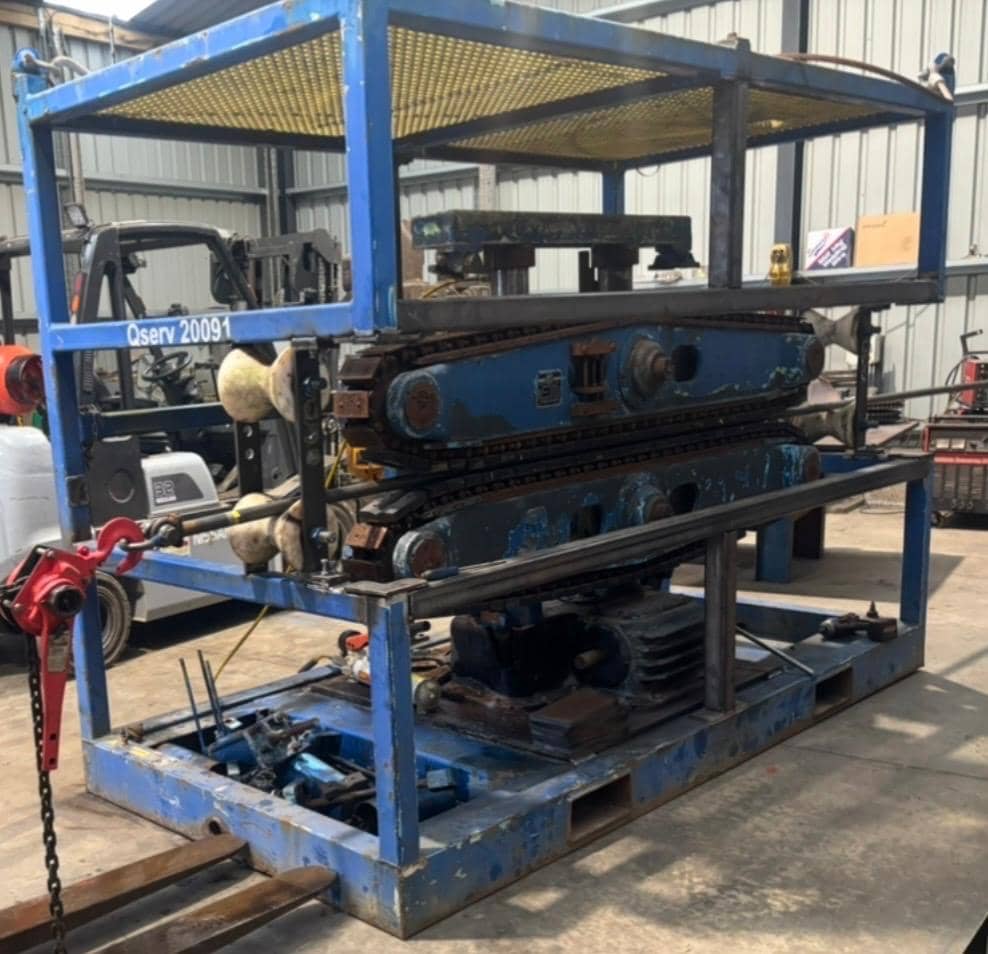

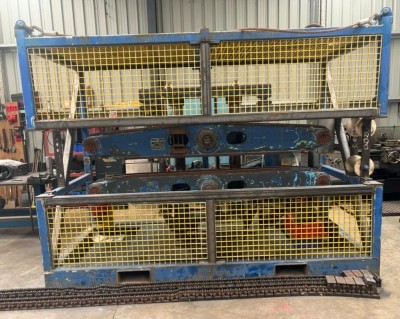

3 Ton tensioner (unfinished refurb project)

Frame Dimensions:             3.2 meter long x 1.6m wide x 2.3m High

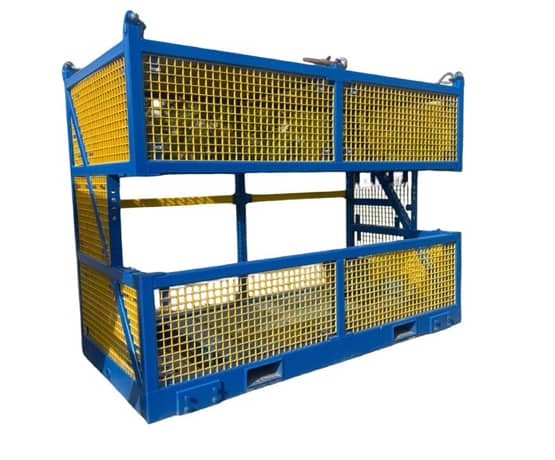

    Forklift Pocket, lifting eyes, protective Gaurds and removable access bars. Weld plates. End support rollers.

Weight:                                Frame and Tensioner (Gross) 2.8 Ton

Track Length:                        2.1 meters long (contact area)

Clamping Force:                   16 Ton @210 bar -    20 Ton @ 250 bar

Track Opening:                     400mm

Product size:                        20mm – 80mm (current pad’s)

Drive:                                   Hydraulic motor, driving gearbox, No rendor or CT available,                Haul in / Pay out only.

                                           Tension read by pressure gauge, line pull in Tons Vs pressure Graph.

Performance Specs:           Theoretical Only

                                           Line speed: 6 m/min @ 35 lpm

                                           Line speed: 10 m/min @ 60 lpm

                                           Line Pull: 3000 kg
