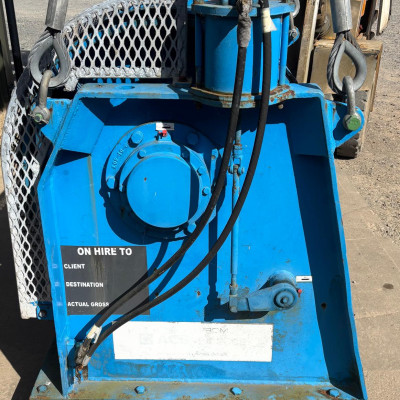

5 Ton Hydraulic Winch's

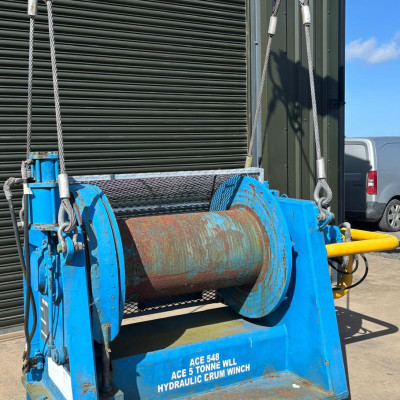

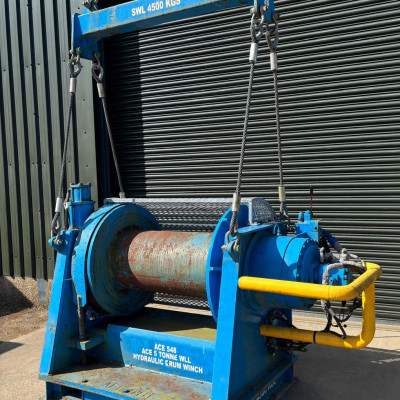

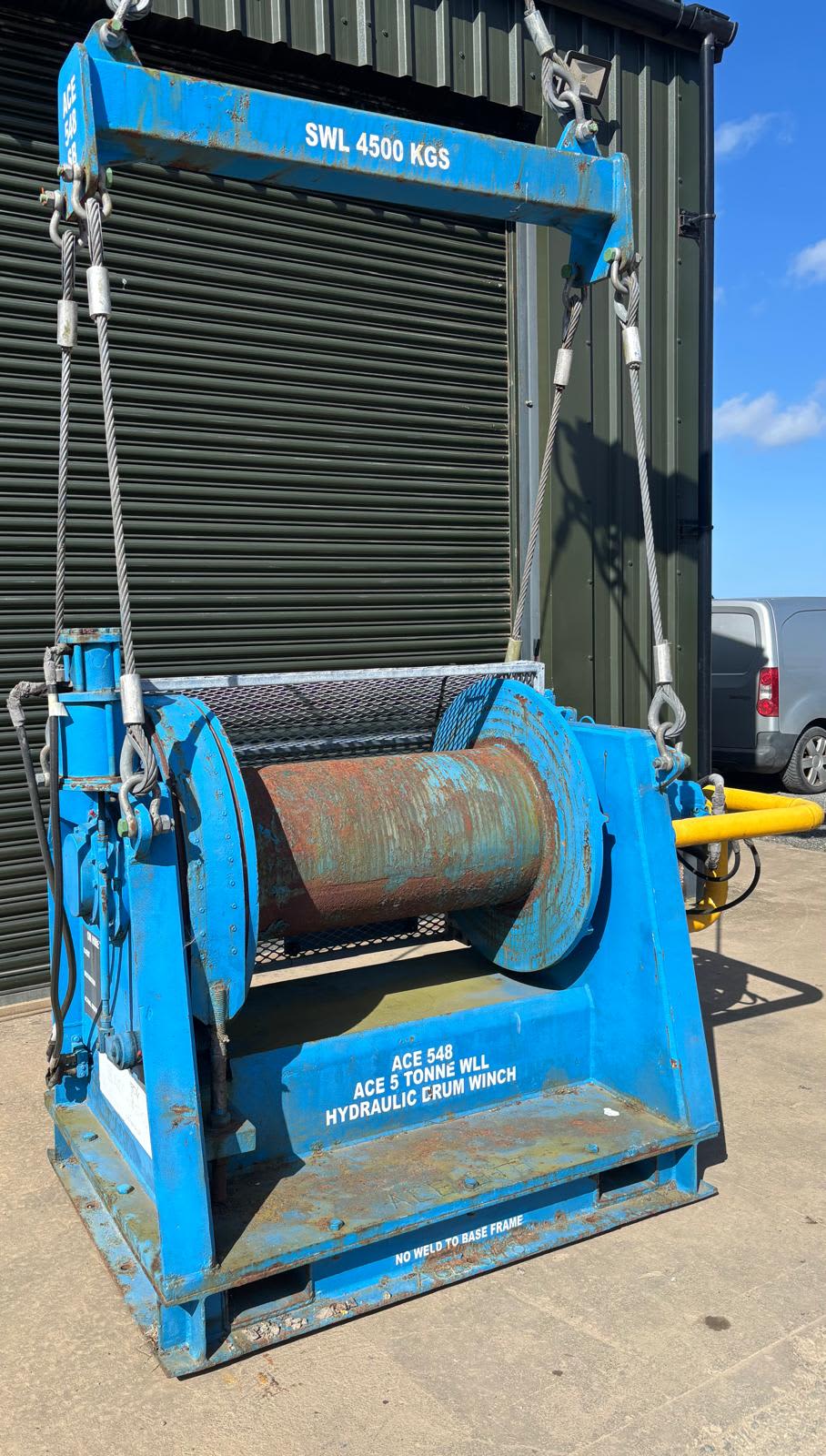

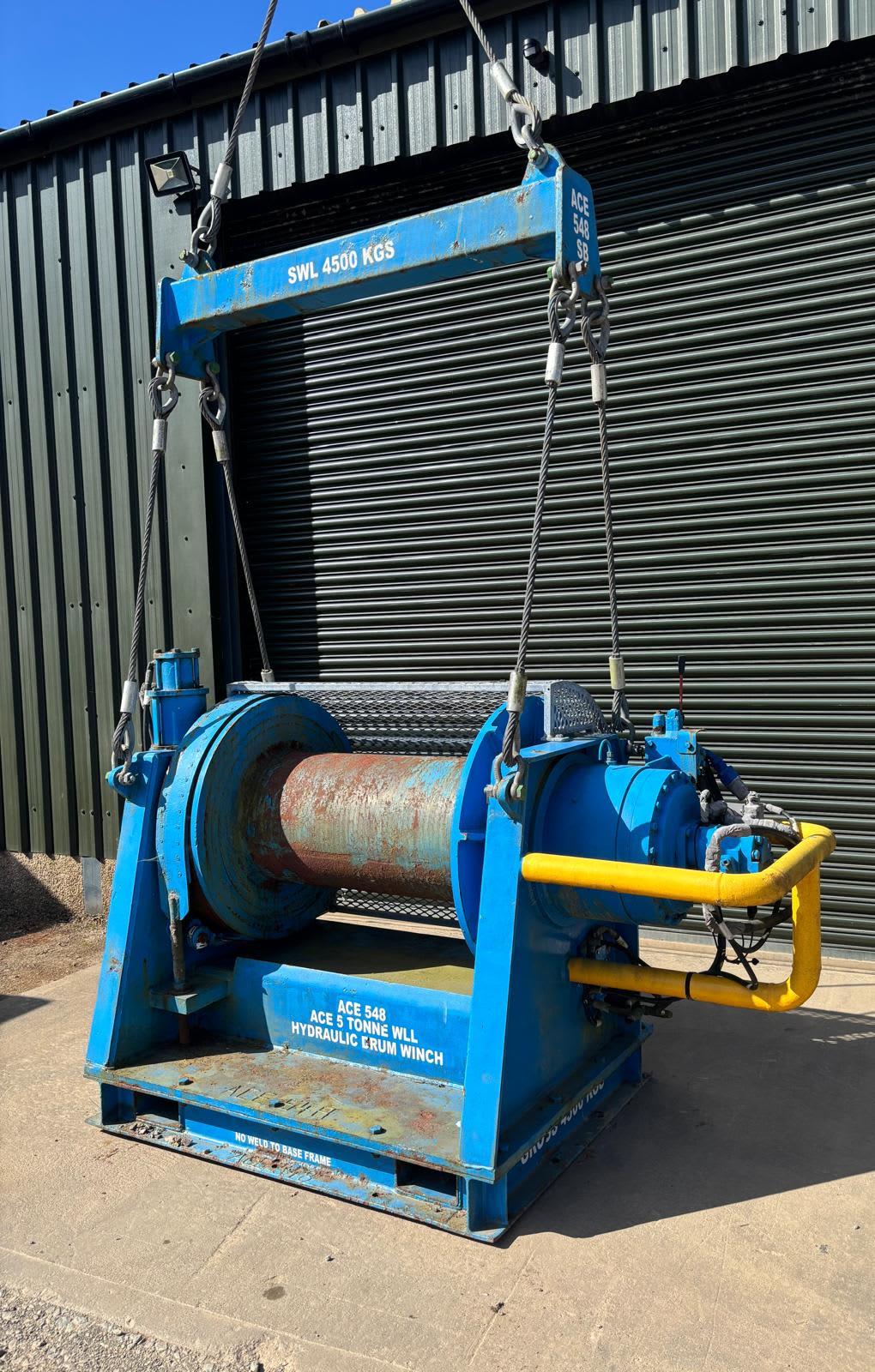

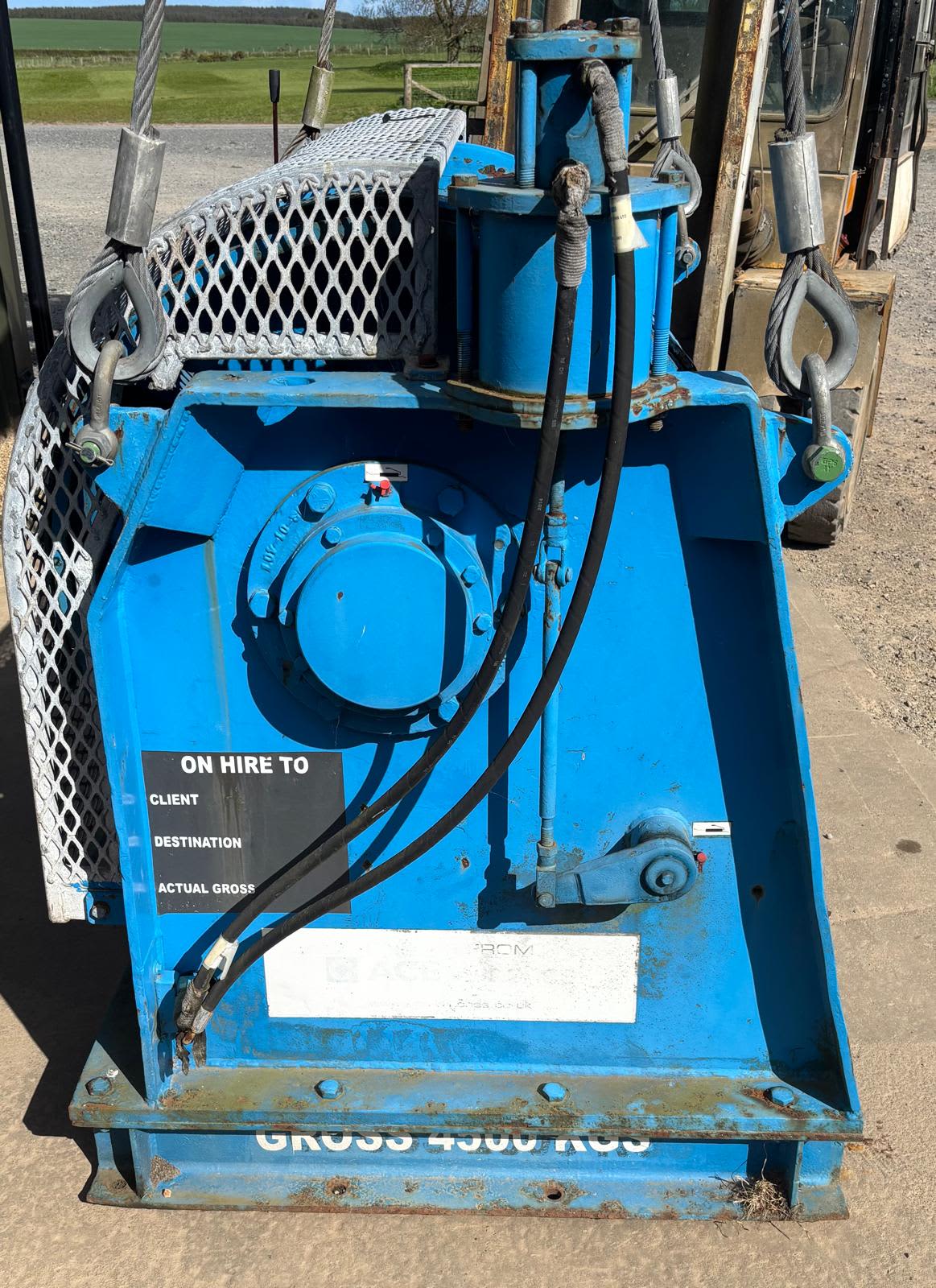

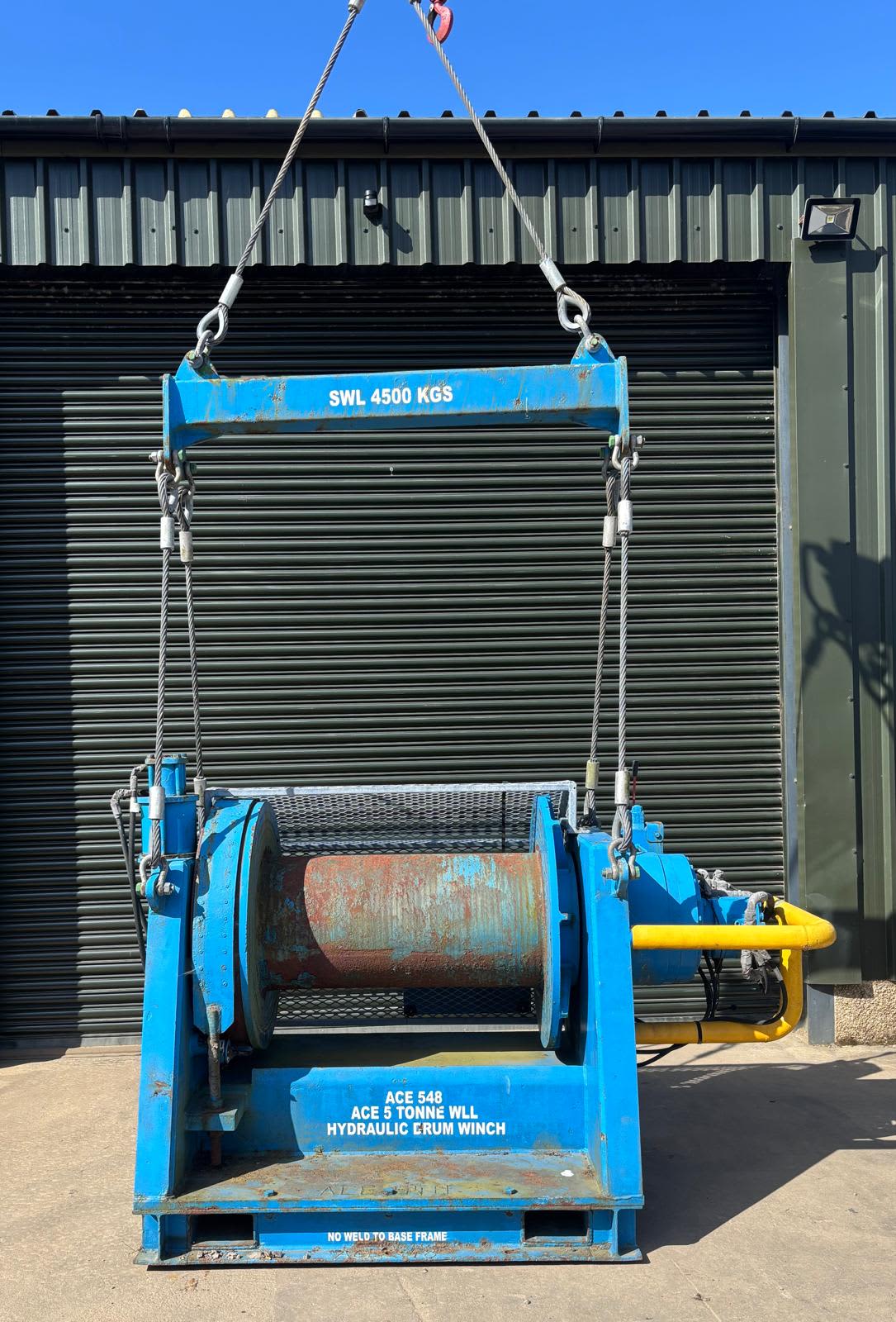

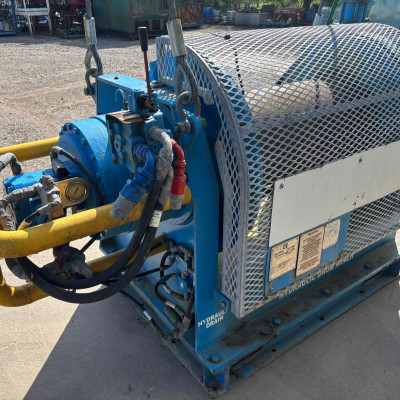

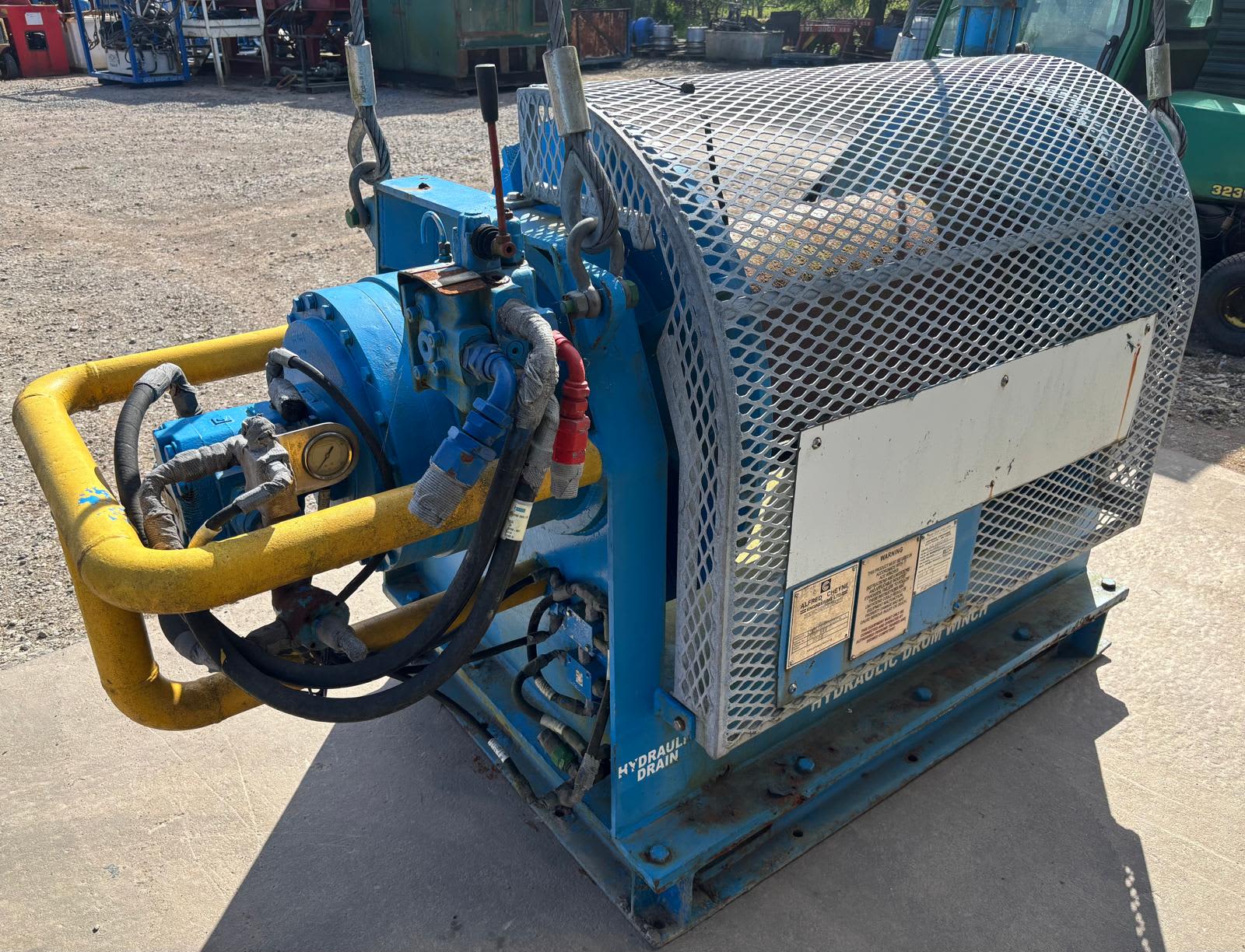

Ace Winch's 5 Ton Hydraulic Winch's.

Full cert package available. Operation and Maintenance manual available. GA drawings. Lifting arrangement drawing. Hyd schematic.

Overall dimensions: 2252mm long x 1148mm wide x 1530mm high.

Maximum wire rope capacity 702 meters of 19mm wire rope.

Tare weight: 2700 kg, Gross weight:4500kg, 5 Tonnes WLL First layer pull.

Drum dimensions: 460mm core x 860mm flange x 960mm between flanges

Brake hold load: 166% Maximum line pull

HPU available if required: HPU Max operating requirements 180 bar, 260 lpm = 50 meters per minute on 1st layer. 130 lpm = 25 meters per minute on 1st layer. 60 lpm = 10 meters per minute on 1st layer.
