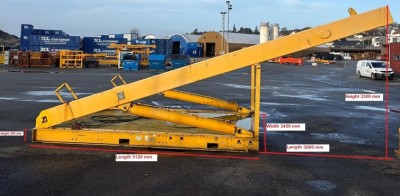

8 Ton capacity A-frame

8 Ton capacity A-frame
Top beam with padeye for snatch block
Up to 8 ton winch pull and 8 ton weight in wire
2 x 8 ton padeyes for support blocks
2 x 3,25 ton padeyes for guide support.
For use on installations and vessels.
Bottom frame: L 5.12 x W 3.4 x H 0.3 meter
A-frame inside width: 2.94 meter
A-frame outside width: 3.34 meter
A-frame height from deck to padeye bolt: 7,63 meter
A-frame total height: 8,50 meter
Total weight: 7500 kg
