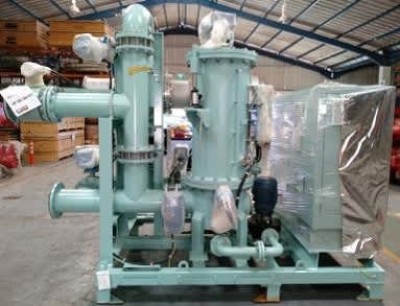

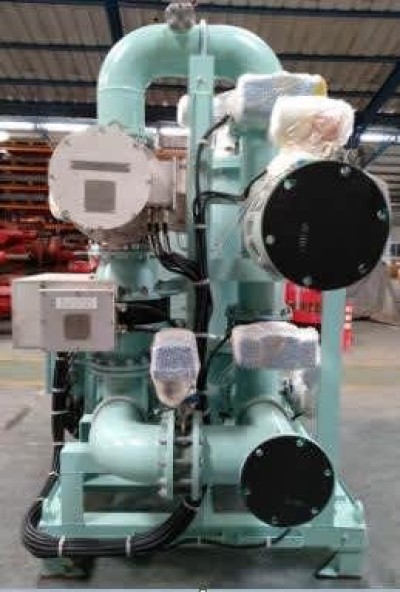

Ara Plasma Ballast Water Treatment System

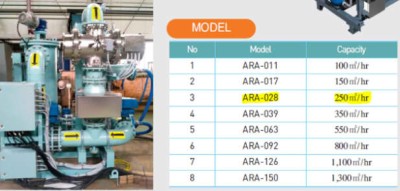

Ara Plasma Ballast Water Treatment System Model: ARA-028 (250 m3/hr)

Pump Capacity: 250m3/hr System Type: Skid Type Material: SUS304 & SUS316L Part, Carbon Steel

Fluid Data: Pressure Drop: 0.2 – 1.4 bar Working Pressure: 2.0 – 6.0 bar Test Pressure: 9.9 bar (+/- 10%)Design Pressure: 8.6 bar

Fluid: Sea Water, Fluid Temp. Max 49 Deg CA mbient Temp. Max: 0-55 Deg C Inlet/outlet Conns: JIS 10L-200A, DN250, FF-SO

Flange Drain Conn for Back-Flushing: JIS 10K-65A, DN65, FF-SO, Flange Back-Flushing Capacity of Filter: 95 m3/hr max

KM3 Power Supply: 180V x 3Ph x 60Hz,Power Source: AC 480V, 50/60Hz, 3PhControl Source: AC 230V, 50/60 Hz, 1 Ph & DC 24V

Power Consumption: 32.5 – 35.5 Kw
