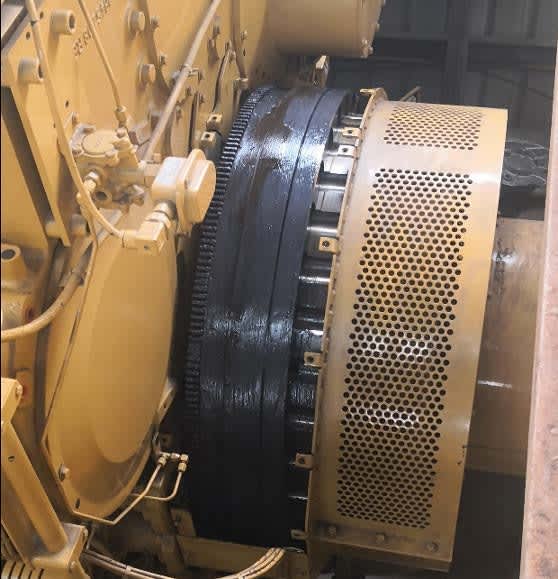

Caterpillar 3616 Tier I genset available for resale, directly from close owners.

Made in USA and delivered in 2010,

These equipment have never been used, are in excellent condition, and currently stored in a warehouse.

Diesel Engine

Model: CAT 3616

Type: V-16, 4 cycle

Aspiration: Turbocharger, Aftercooled

Rated power max: 4600 bKW

Rated speed: 900 rpm

Emission: IMO compliance

Overload 110% for 1 hr: 5060 bkW

Rating and emission based on ambient conditions:

Air inlet of the turbocharger: 45 °C

Barometric pressure: 100 kPa

Relative humidity: 60 %

Sea water temperature: 32 °C

BSFC @100% load (w/ pump +5%/-0%): 195.5 g/kW-hr

TBO approx.: 40,000 hours

Bore / Stroke: 280 / 300 mm

Displacement: 296 L

Compression ratio: 13:1

Firing pressure, max.: 17300 kPa

BMEP @ 100% load: 2283 kPa

Mean piston speed: 9.0 m/s

Engine dry weight (approx.): 28,500 kg

Alternator

Type: Synchronous brushless revolving field with direct connected rotating brushless exciter

Code: Kato 8P12-4700

Power rating: 5500 KVA, 4400 eKW, 0.8 pf, +110% overload for 1 hr

Duty: Continuous

Rated speed: 900 rpm, 8 poles

Electrical rating: 11.2 KV, 60 Hz, 3 phase

Connection: 6 wire, wye

Temperature rise: 90°C/50°C ambient

Insulation: Class F

Enclosure: IP44

Cooling: Totally Enclosed Water to Air

Bearing design: Two Sleeve with external tube

Net weight (approx.): 25,946 kg

1.3 Air Inlet System

Flow of air at 100% load: 501.6 m³/min

Air temp. @ air cleaner, max.: 45 °C

Air temp. after after-cooler, alarm: 60 °C

Intake manifold pressure at 100% load: 277 kPa

Air inlet restriction, new/max.: 1.25 / 3.8 kPa

After-cooler pressure differential at 100% load, clean state: 3.4 kPa
