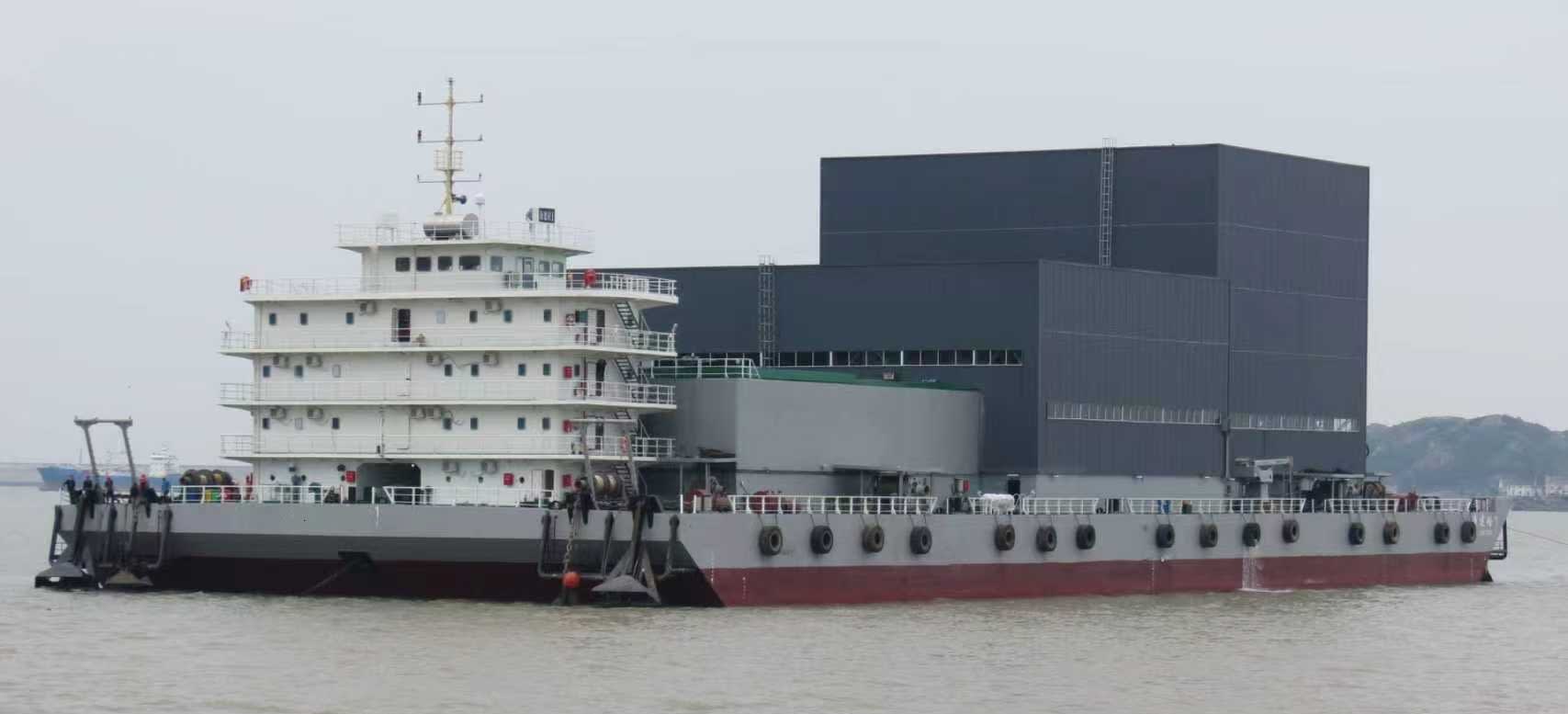

Concrete/Cement Mixing Vessel

Ship's type: Concrete/Cement Mixing Vessel for SALE

Delivery:2020 China

Class: CCS Coastal

Length overall (LOA): 108.83 m

Moulded breadth: 39.98 m

Moulded depth: 6.18 m

Design draft: 3.60 m

Crew complement: 27 persons

Lightweight: 6,850 tons

Mixing capacity: 360 m³/h

Mooring system: 8-point anchor positioning

Power Supply System

Total installed power: 1,920 kW

3 × 600 kW

1 × 120 kW

Mixing System

2 × 3 m³ concrete batching plants (Model: HZS180C8), supplied by Sany Heavy Industry

Material Supply System

2 × concrete pump trucks, each with 56 m boom and 180 m³/h delivery rate (Sany Heavy Industry)

Waste Recycling System

Centralized processing via waste separator (Sany Heavy Industry),

enabling zero discharge and 100% slurry recovery

Storage Configuration

4 material storage stations

10 powder tanks

Mixing System Performance (Sany Heavy Industry)

Two fully computerized 3 m³ mixing units (Model: HZS180C8), each rated at 180 m³/h.

Parameter Value & Accuracy

Rated production rate 180 m³/h

Installed capacity 250 kW

Mixer nominal capacity 3,000 L

Concrete discharge height ≥ 3.8 m

Aggregate metering range & accuracy 900–3,000 kg, ±2%

Water metering range & accuracy 200–800 kg, ±1%

Admixture metering range & accuracy 15–80 kg, ±1%

Cement metering range & accuracy 300–1,800 kg, ±1%

Fly ash / mineral powder range & accuracy 200–1,000 kg, ±1%

Waste recycling: Waste separator enables closed-loop treatment,

zero discharge, and 100% slurry recovery (land-based method illustrated).

Feeding System

This unit is promoted by GRS, connect to learn more.
