Crane Barge Terminal transshipment and hoisting

Vessel Type:Crane Barge
Terminal transshipment and hoisting
Ship-to-ship (STS) operations
Keel laid: August 6, 2013
Completion date: February 10, 2014
Manufacturer: China
Navigation Area: Class B, CCS
Length Overall (LOA): 138.40 m
Maximum Breadth: 20.20 m
Moulded Depth: 4.30 m
Light Draft: 1.50 m
Loaded Draft: 1.446 m
Tonnage / Displacement
Gross Tonnage (GT): 3930 tons
Net Tonnage (NT): 1179 tons
Light Displacement: 4054.962 tons
Loaded Displacement: 3904.962 tons
Hull Material: Steel
Framing: Mixed longitudinal and transverse
Watertight transverse bulkheads: 8
Number of anchors: 6
Number of windlasses: 2

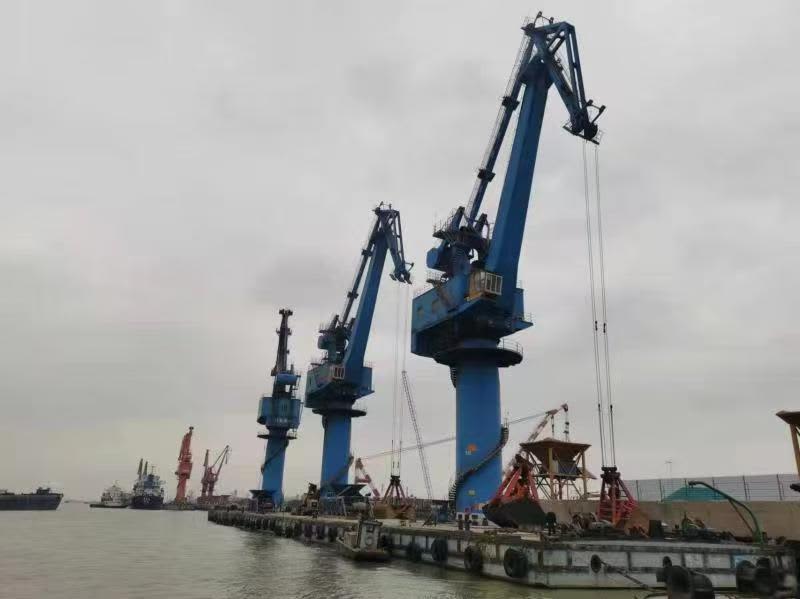

Number of cranes: 3 nos
Working Class: A8
Lifting speed: 35 m/min
Slewing speed: 1.25 r/min
Rated Lifting Capacity 50 tons /30 tons for grab
Maximum Working Radius 25 m/33 m
