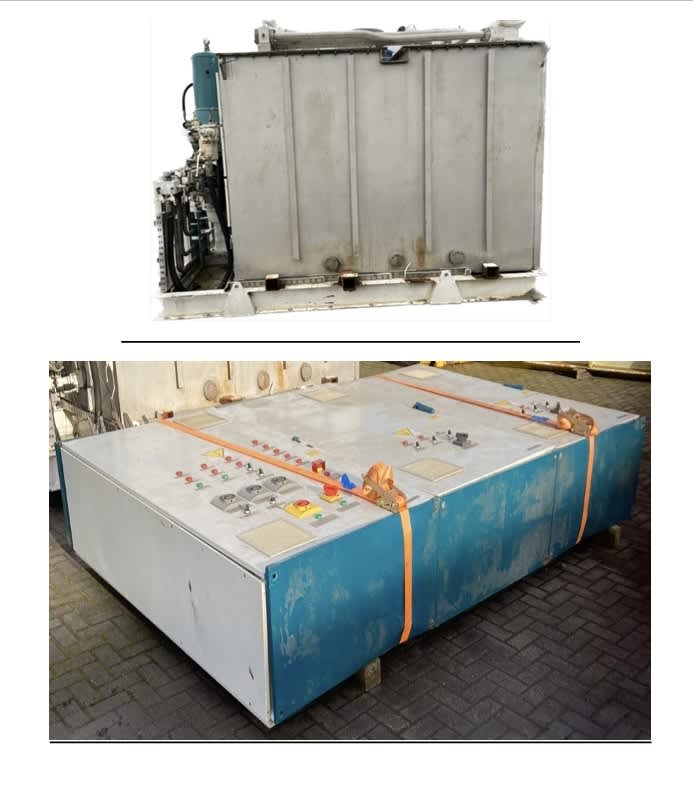

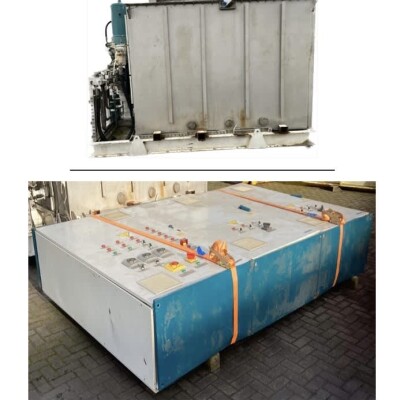

Electric Hydraulic Power Unit (Twin 288Kw) 576Kw

Twin 288Kw (576 Kw)

DETAILS Main Motors Main Motor 1: 288kw, 400v (500amp) ,690V (290amp) 60Hz - 1788 rpm Main Motor 2: 288kw, 400v (500amp) ,690V (290amp) 60Hz - 1788 rpm Manufacturer: LONNE Main Pumps Main Motor 1 Pump set: Kawasaki K3VL 200cc, Kawasaki K3VL 112cc Main Motor 2 Pump set: Kawasaki K3VL 200cc, Kawasaki K3VL 112cc Flow and pressure One motor running : Flow 500 lpm @ 320 bar (350 bar peak) Two Motor running: Flow 1000 lpm @ 320 bar (350 bar peak) (Pressure compensating) Aux Motor/Pumps Aux Motor 1: Fitted with Settima 440LPM Low pressure screw pump Aux Motor 2: Fitted with Settima 75LPM Low pressure screw pump. CJC Offline Filtration Unit HDU27/54P. Complete Electrical control/Starter Panel. FULL DOCUMENTS PACKAGE AVAILABLE.
