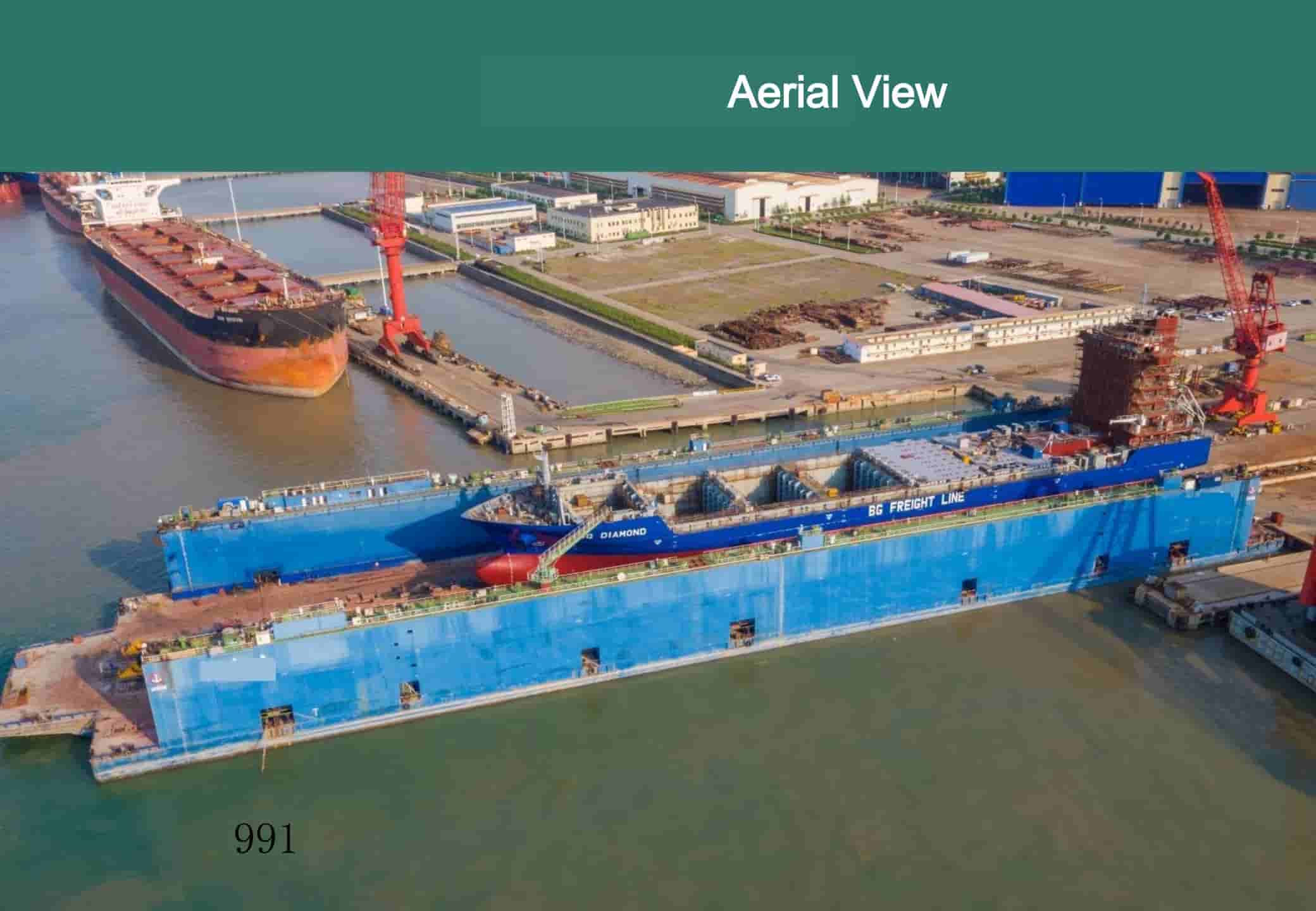

FLOATING DOCK 30,000TLC

Ship type: Floating Dock

Completed on: July 21, 2014

Class: CCS CSAD Floating Dock

Total length: 235.96 m

Total tons: 37,733 tons

Dock wall length: 201.60 m

Type width (between outer dock walls): 57.00 m

Width of inner dock wall: 48.00 m

Inner net width: 46.80 m

FLOATING DOCK 30,000TLC for SALE

Wall width: 4.50 m

Duke depth: 22.40 m

Floating boxes: 24 units

Safety deck elevation from baseline: 17.00 m

Safety deck to top deck: 5.40 m

Floating platform deck height (centre/side): 8.00/8.00 m

Keel pier height (sliding track): 1.50 m

Draft during operation: 5.00 m

Draft to maximum submerged depth: 3.00 m

Slide way height: 17.00 m

Total dock rib spacing: 0.80 m

Power Supply System

Main generating set (TBD620V12) – 2 groups

Auxiliary generator set (CCFJ64Y-W) – 1 group

Air compressor unit (LS160ML) – 1 set

Traction System

Cable winch (DC300) – 7 units

Ship winch (YC200) – 2 units

Ballasting System

Centrifugal pump (EMDE-500MC-C110×6) – 12 units

Centrifugal pump (500CSL-18) – 4 units
