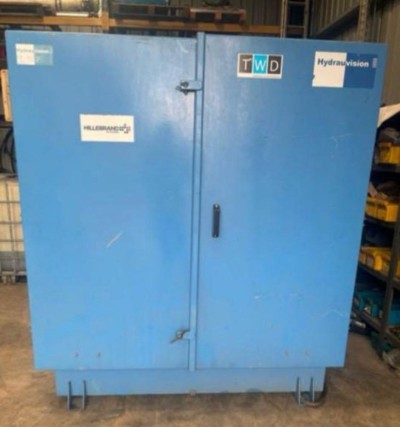

22Kw Electric Hydraulic Power Unit (HPU)

22Kw Electric motor, Parker Pv028 Axial piston Pump, 10Kw Electric Air blast cooler, Danfoss PVG32 DCV control block, Stainless steel electric starter panel,

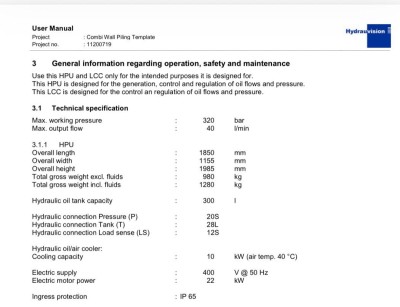

HPU Dimsensions: 1850 long x 1155 wide x 1985 high. Tare weight:980kg, Gross weight:1280kg. Hyd tank capacity 300L.

MWP 320 bar, Max output flow 40 lpm.

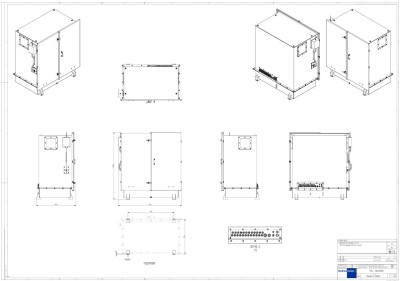

Built by Hydrauvision. GA drawing available, Hyd schematic and BOM, Electric schematics.
