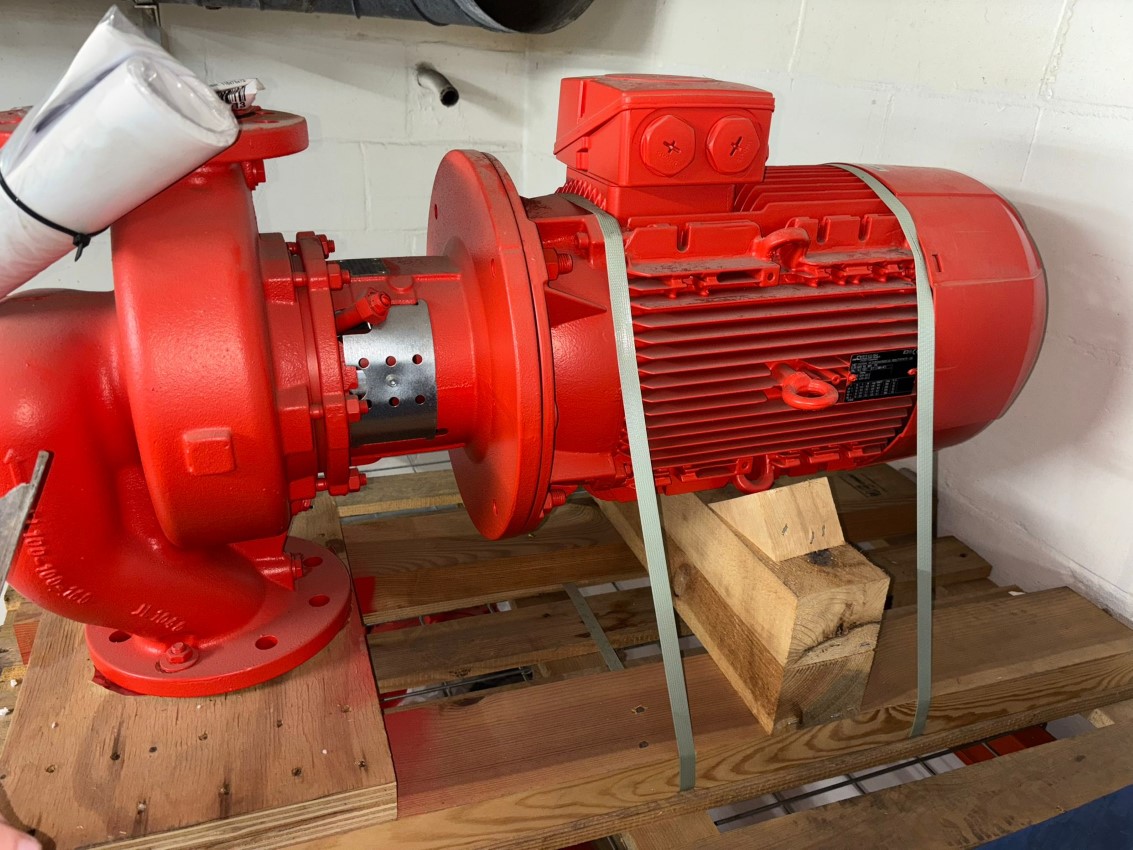

KSB ETALINE Pump with Motor - 180 m³/h, 23 m Head
This KSB ETALINE pump (ETL 100-100-160) comes with a 3-phase induction motor for optimal marine performance. With a capacity of 180 m³/h and a head of 23 meters, this pump is ideal for various marine fluid handling applications. Powered by a high-efficiency IE3 motor, this pump operates at 2959 RPM with a power output of 18.5 kW, ensuring reliable operation. The unit is built to IP55 standards for protection against harsh marine environments.
Specifications:
- Brand: KSB
- Type: ETALINE ETL 100-100-160
- Capacity: 180 m³/h
- Head: 23 meters
- Motor Power: 18.5 kW
- RPM: 2959 RPM
- Voltage: 400 V / 690 V
- Frequency: 50 Hz
- Efficiency Class: IE3
- Protection Class: IP55
- Manufacture Year: 2019
- Dimensions: Ø 156 mm
