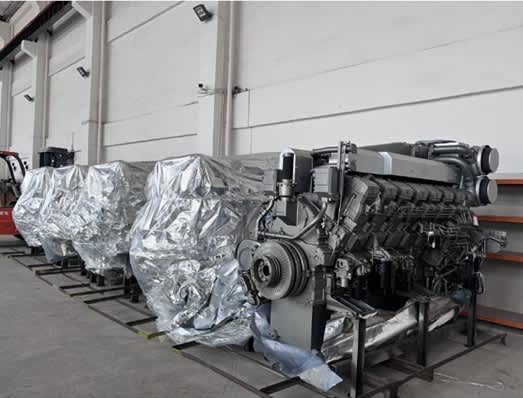

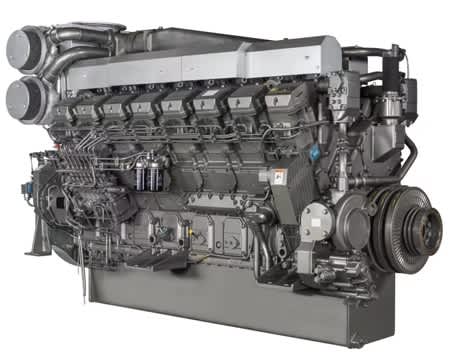

MARINE ENGINE: Mitsubishi/Japan

MARINE ENGINE: Mitsubishi/Japan

Manufacture Date 2023

S16R2-G1MPTK-5

MARINE AUXILIARY ENGINE

SPECIFICATIONS

Application Main Auxiliary

Cylinder configuration V-16

Total displacement (l) 79.9

Bore x stroke (mm) 170 x 220

Flywheel and housing SAE 21/SAE No.00

Compression ratio 14.0:1

Fuelinjgction pump Mitsubishi

Governor type Electric

Dry weight (kg) 7870±10%

Dimensions - L x W x H (mm) 3065 x 1622 x 2029

Method of operation

4-cycle, water cooled, diesel engine,

direct-injection,turbocharged

with air-cooler

Cooling method

Engine coolant: Indirect cooling by sea water

Intake air: Direct cooling by sea water

Output (kW) 1960

Engine speed (rpm) 1500

Emissions Tier II

Classification CCS

Date 2023.7

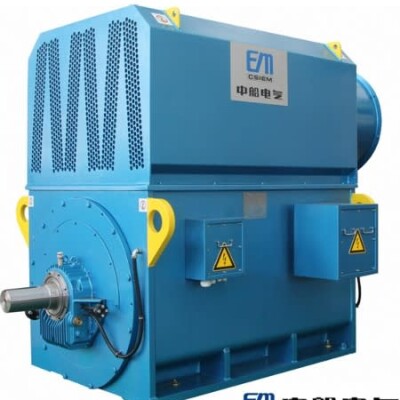

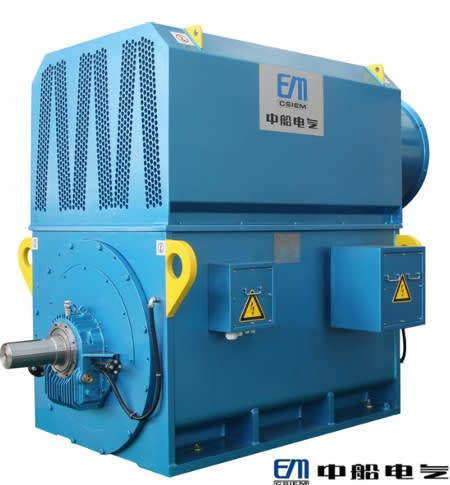

MARINE GENERATOR

TFJ6 TFJ6 634-4SP72/CSIC

Rated 2250kVA

Rated Voltage 690V

Rated Current 1883A

Raled Freolenoy 50HZ

Rated Speed 1500RPM

IP Class IP44 （ water cooling)

Insulation Class F

Temperature Rise Class F

p.f. 0.8

Phase/Wire 3/3

Configuration of Main Alternator Brushless

Two bearings Sea water cooling

Classification CCS

Manufacture Date 2024.3

 Status: Never used, in stock.

 Owners/Sellers invite for best offer.
