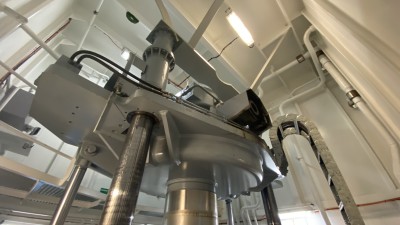

Schottel retractable Thruster 800kw

Power applied to input shaft : 800 kW
Input speed : 1200 r.p.m
turning direction of Input shaft
seen on input shaft,
for thruster bow center : clockwise

Type of construction : retractable-drive
Installation into vessel : mounted from top, bolted, Epocast

sealed
Propeller Arm /Stem length : 5200 mm
Casing material lower gear box : GGG40
Weight excl oil & auxiliaries : 20 t (approximately)
Required oil charge : 1300 l (approximately)
Note: The final weight will be determined in the installation proposal.
Gear Reduction Ratio : 3,364
Nozzle : WAG 19A modified
Thruster rating
Working hours : < 5000 h / per annum
Load : continuous

continuous operation in full load for 24h
Overload : no overload

(only with prime mover management)

Operation Area : Unrestricted service
