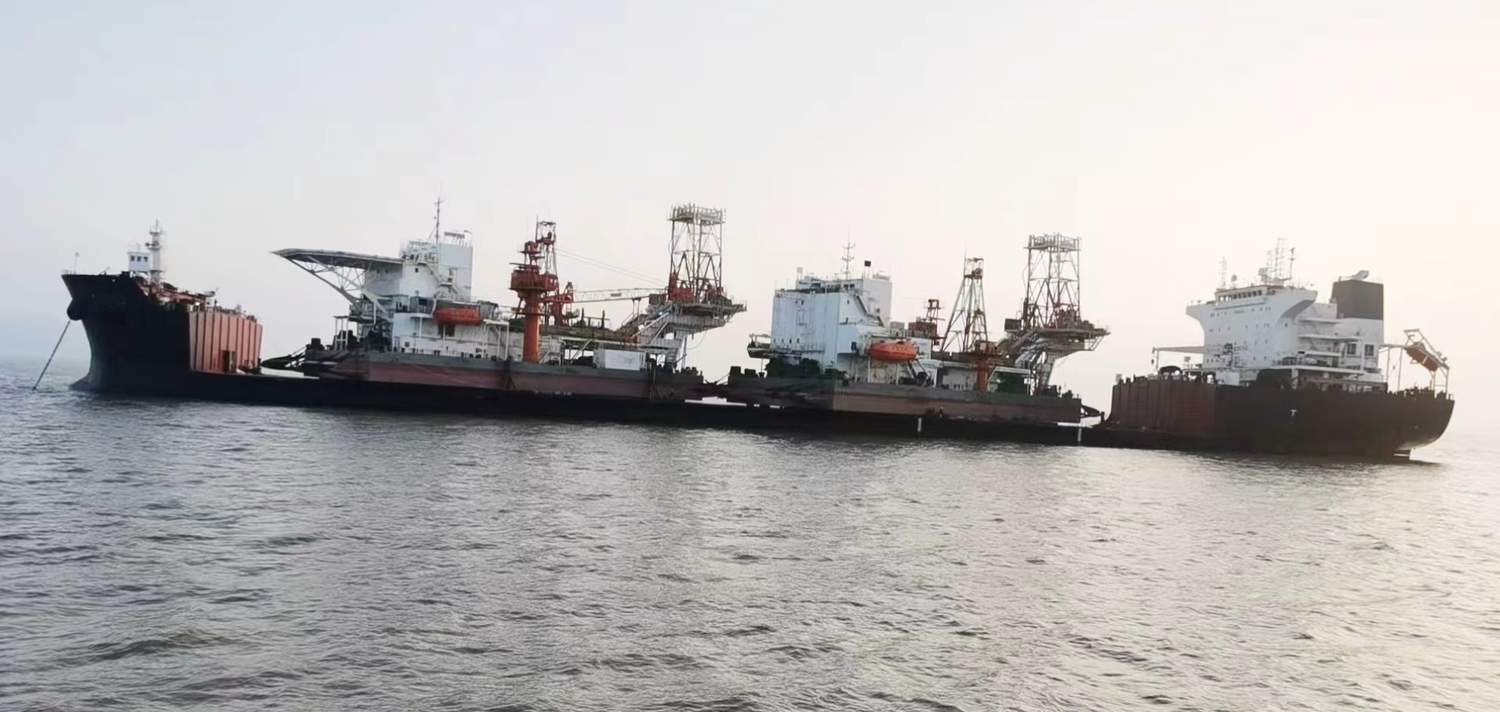

Semi-Submersible Ship

Type of Vessel Semi-Submersible Ship for SALE

Keel laid 25.06.2009

Delivery 23.02.2012

Rebuild  10.12.2025

Classification BV

Class Notation  100A1 Bulk Carrier, CSR, BC-A, GRAB[30],

ESP, *IVS, LI, LMC UMS, BWTS, EGCS (Open, Partial)

Year of Built 2012

Building Yard CHINA

Length o.a. 229.20 m

Length b.p. 222.00 m

Depth moulded 12.5 m

Moulded Beam / Max Beam 38 m / 42 m

Max draft 8.5 m

Freeboard 4.0 m

Masthead Height a. Keel50.8 m

Submerge depth 16.5 m

Gross Tonnage 33925

Net Tonnage 10177

Deadweight 18778.3 mt

Light Ship 15705 mt

Displacement 58623.6 mt

summer deadweight capacity is 93,005 tonnes

Loading Capacity (Main deck loading space)

156.0 m × 42.0 m = 6552.0 m²

Permit Deck Load 18000.00 t

Main Engines (Number, Output) 1 × 13,560 kW

Main Engine Type HYUNDAI MAN B&W 6S60MC-C7

Aux. Generator Diesels (Number, Output)3 × 750.00 kW

Aux. Generator Type HYUNDAI-HIMSEN 7H17/28

Propeller (Number, Type)1 Fixed Pitch, Right

Propeller Diameter 7,000 mm

Shaft Generator (Number, Output)NIL

Speed (Service / Maximum)11.5 kn / 15.0 kn

Fuel Oil Tank            3222.6 m³

Diesel Oil Tank            570 m³

Lub. Oil Tanks            174.11 m³

Fresh Water Tanks 532.73 m³

Water Ballast Tanks 63935.9 m³

Total Ballast Water 63935.9 Cbm

Total Ballast Tanks 61

Ballast (specified) 20965.2 Cbm / 32

Aux. Ballast          42970.7 Cbm / 29
