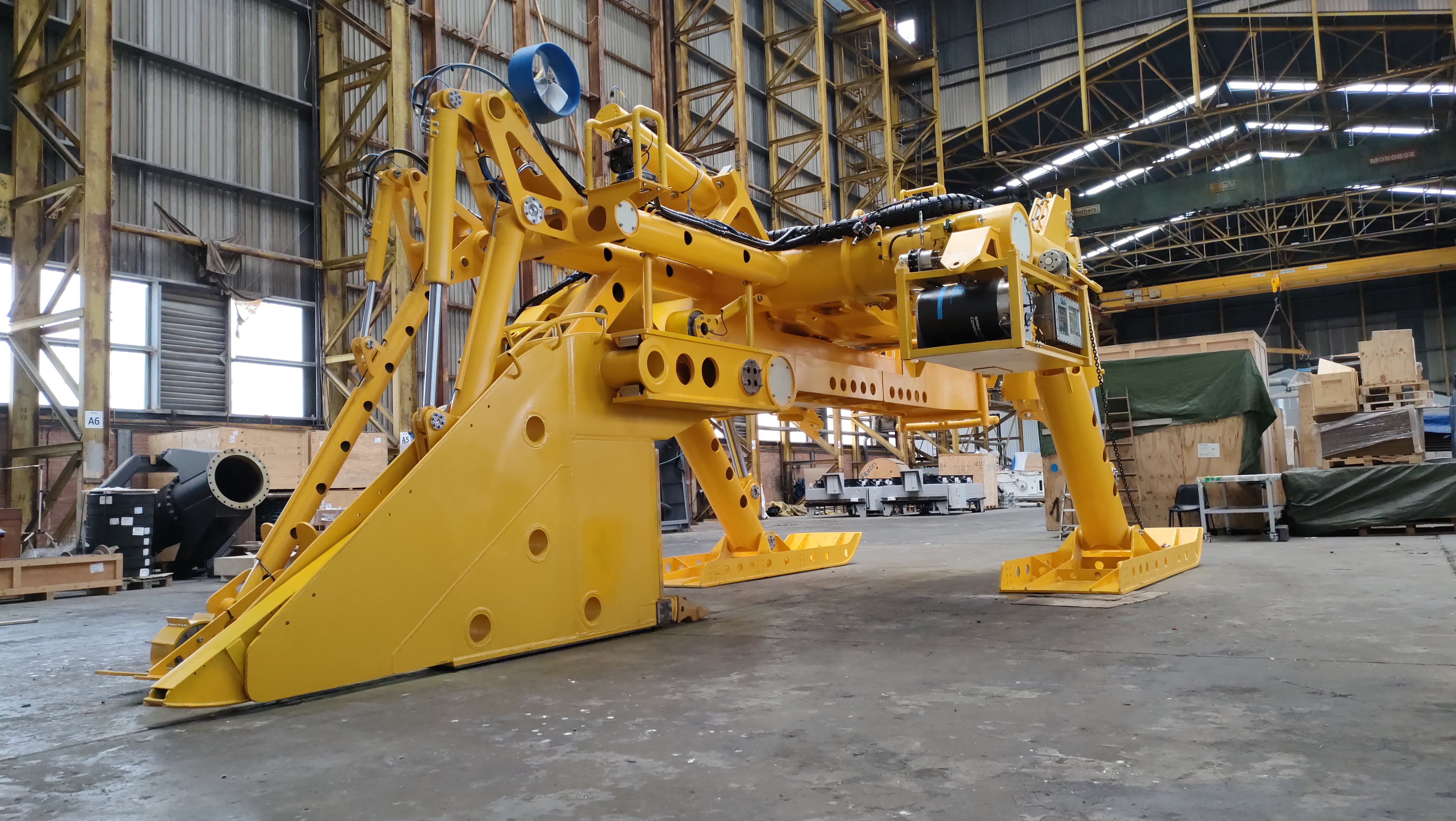

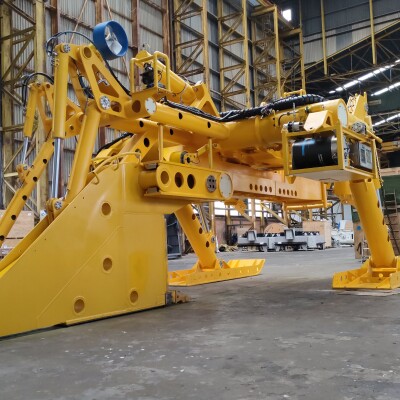

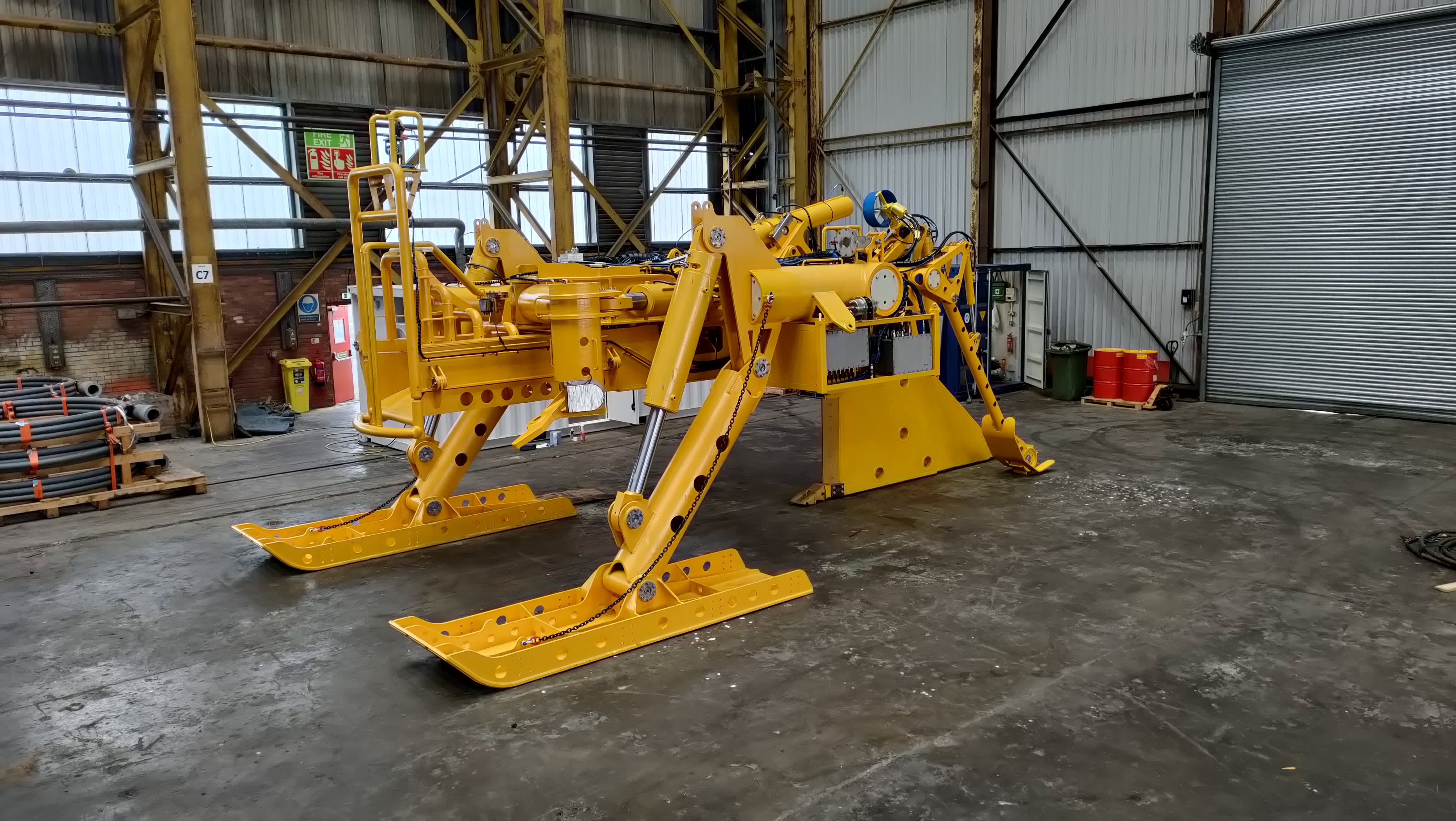

The 'Standard Cable Plough' 1200 is designed to exceed the current market standard cable plough specifications while still providing all the typical functions expected from a modern cable plough arrangement The SCP1200 package includes our signature cost effective combination of easy to source and repair steel plus off-the-shelf components from suppliers with outlets worldwide. As with all our systems, our 'open source' approach to structural drawings provides operators with construction drawings for commonly damaged items such as skids and camera cages so spares can be fabricated locally

The SCP1200 is intended to include everything needed for standard cable ploughing and a little more

For more information and contact details visit: https://screaton.co.uk/trenching-systems/

Note: The system price depends on the specification requested. Contact S&A direct for pricing information.

GENERAL

Depth rating 2000m

Weight in air 23Te

Max. tow load  50Te

Installed power 15kW HPU (jetting optional)

PERFORMANCE

Trench depth 0 to 1.2m variable (1.5m share optional)

Cable diameter 20mm to 200mm

Min bend radius 1.5m

Steering +/- 15 degrees

Repeater 400mm max diameter

JETTING

100kW dedicated jetting via removable nozzles - OPTIONAL
