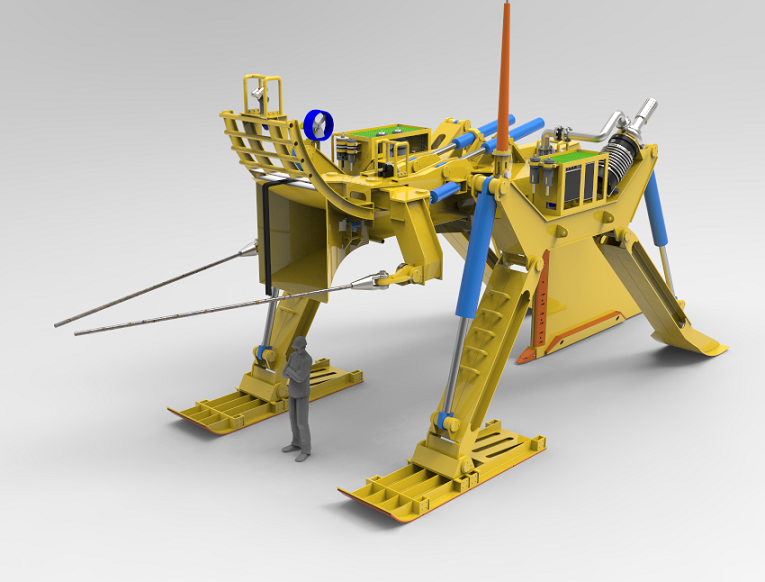

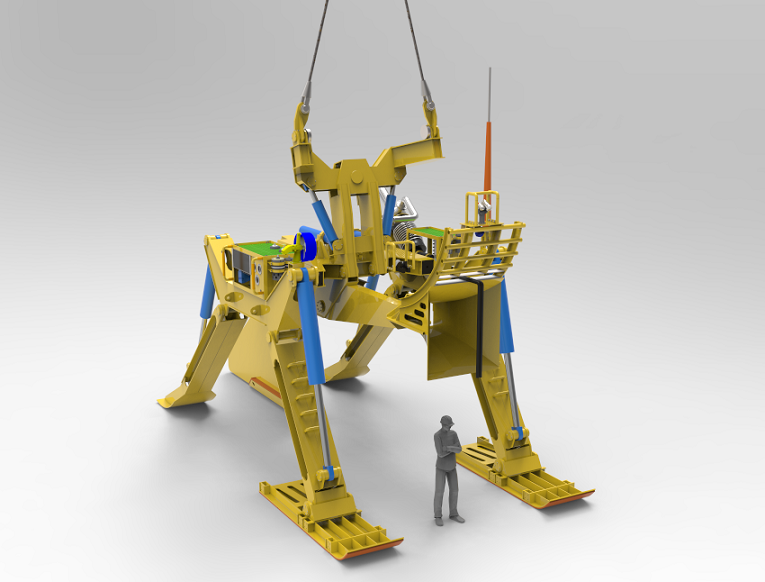

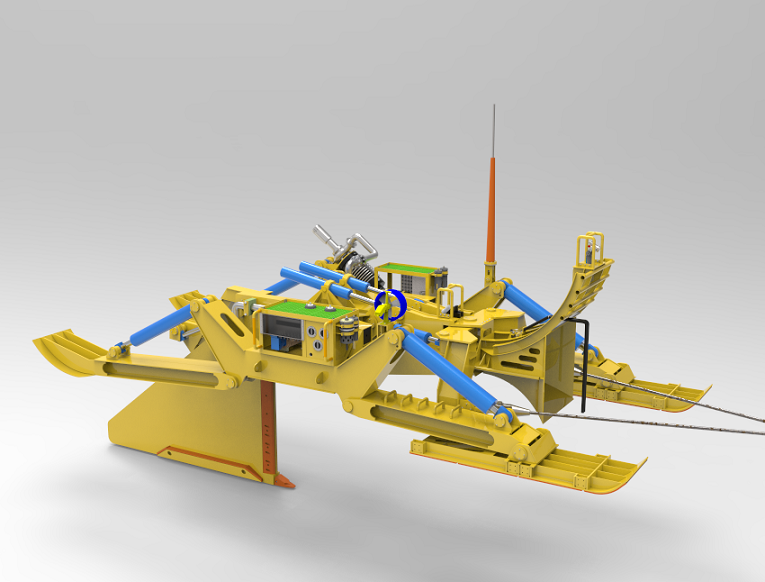

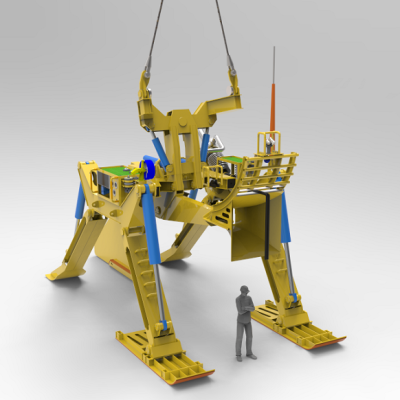

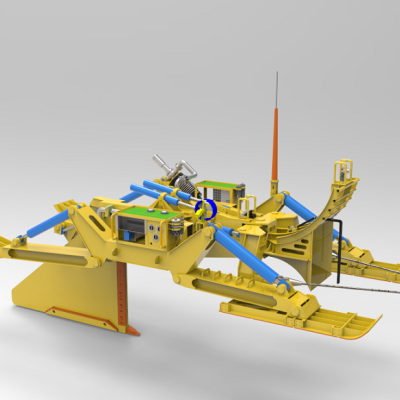

The 'Standard Cable Plough' 2500 is designed to exceed the current market standard cable plough specifications while still providing all the typical functions expected from a modern cable plough arrangement The SCP2500 package includes our signature cost effective combination of easy to source and repair steel plus off-the-shelf components from suppliers with outlets worldwide. As with all our systems, our 'open source' approach to structural drawings provides operators with construction drawings for commonly damaged items such as skids and camera cages so spares can be fabricated locally

The SCP2500 is intended to include everything needed for standard cable ploughing and a little more

For more information and contact details visit: https://screaton.co.uk/trenching-systems/

Note: The system price depends on the specification requested. Contact S&A direct for pricing information.

GENERAL

Depth rating 2000m

Weight in air 35Te

Max. tow load  80Te

Installed power 275kW (25kW HPU, 250kW Jetting)

PERFORMANCE

Trench depth 0 to 2.5m variable

Cable diameter 20mm to 200mm

Min bend radius 2m

Steering +/- 15 degrees

Repeater 400mm max diameter

JETTING

250kW dedicated jetting via removable nozzles 600m3/ hr @ 120m, 12 Bar
