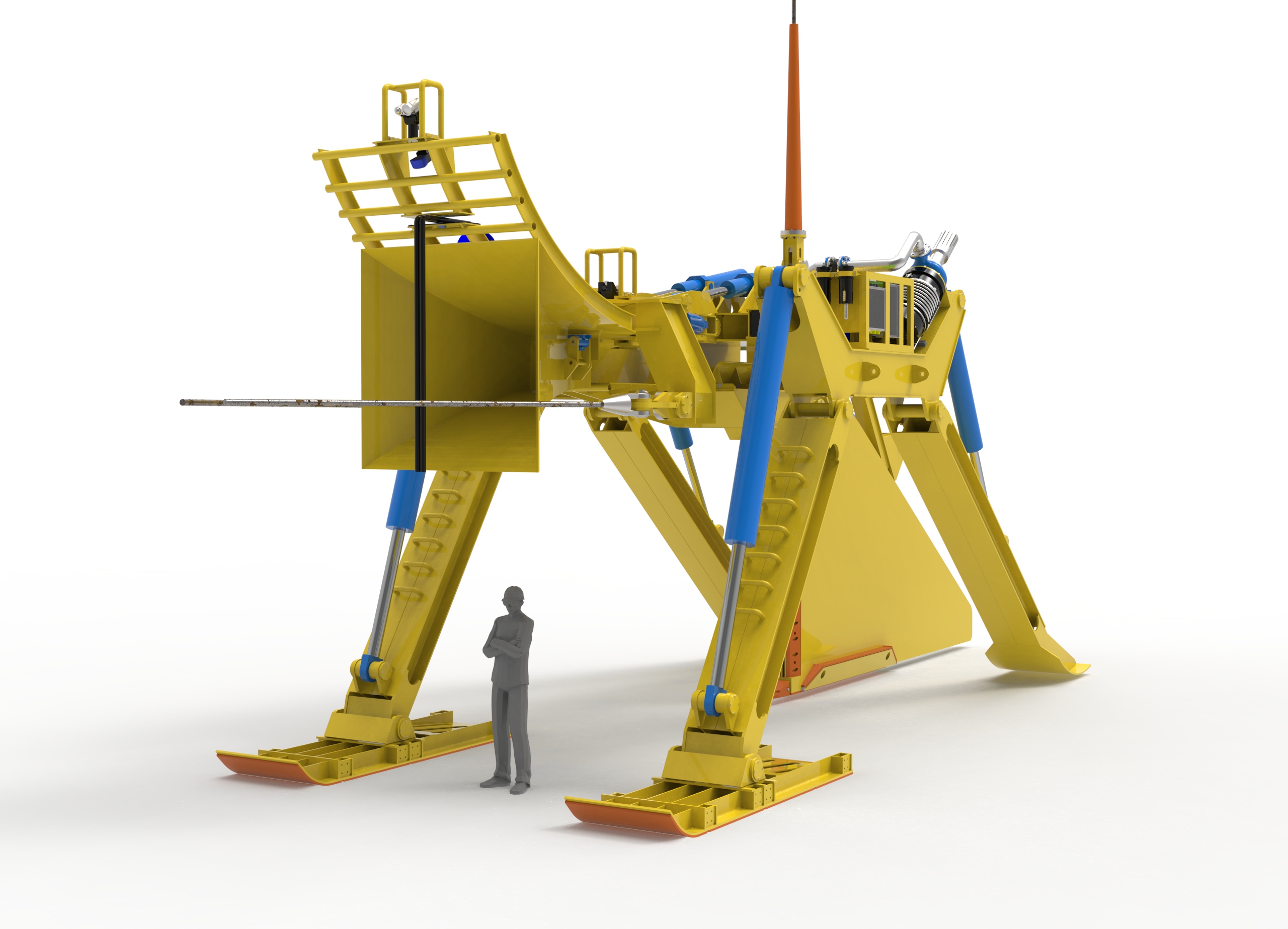

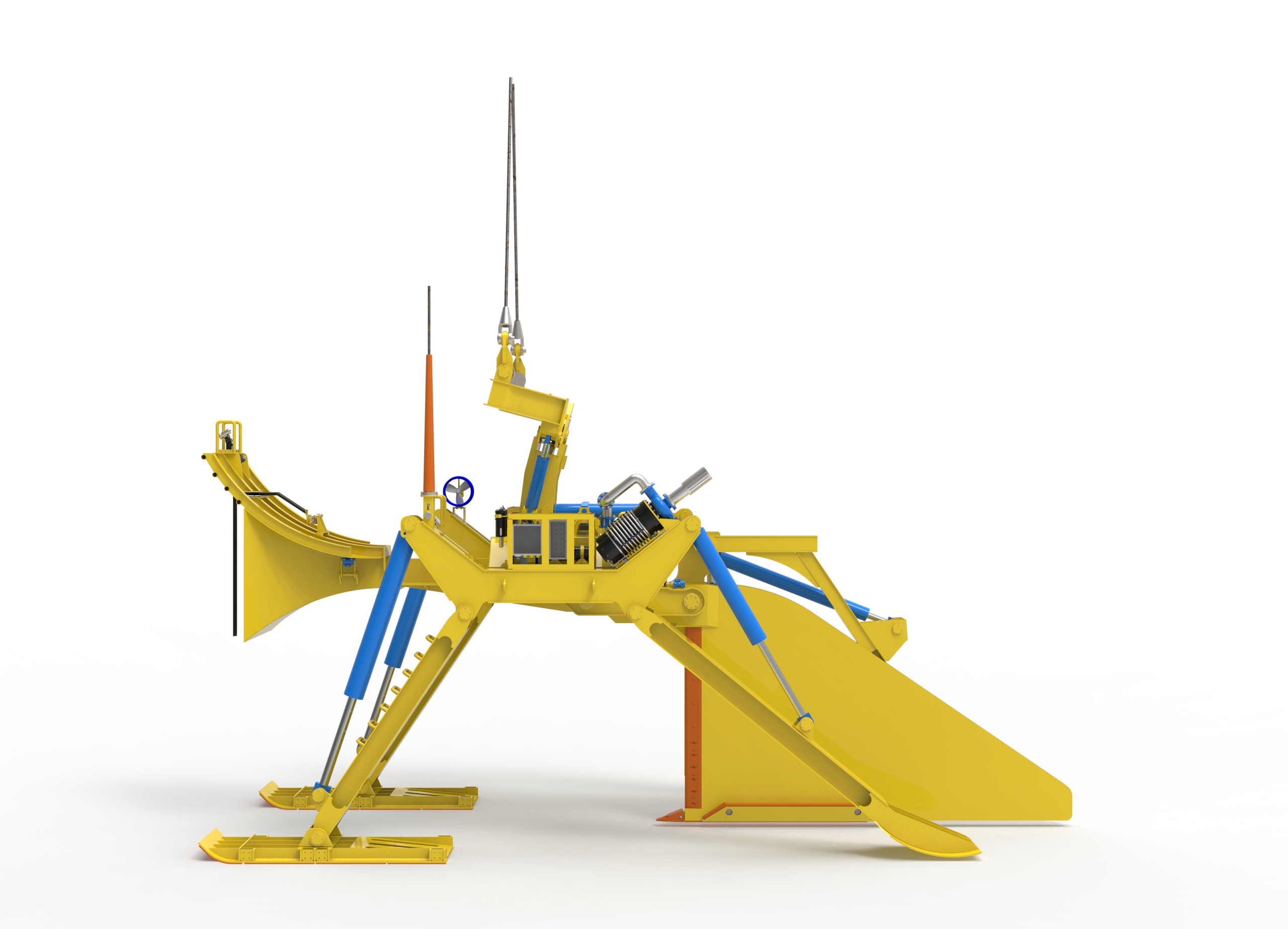

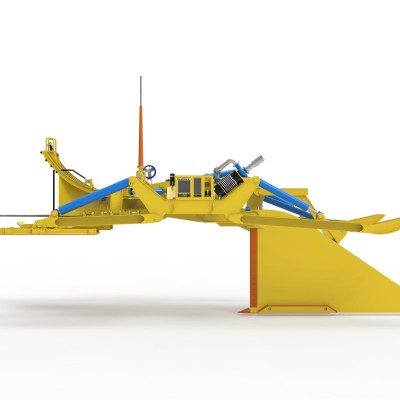

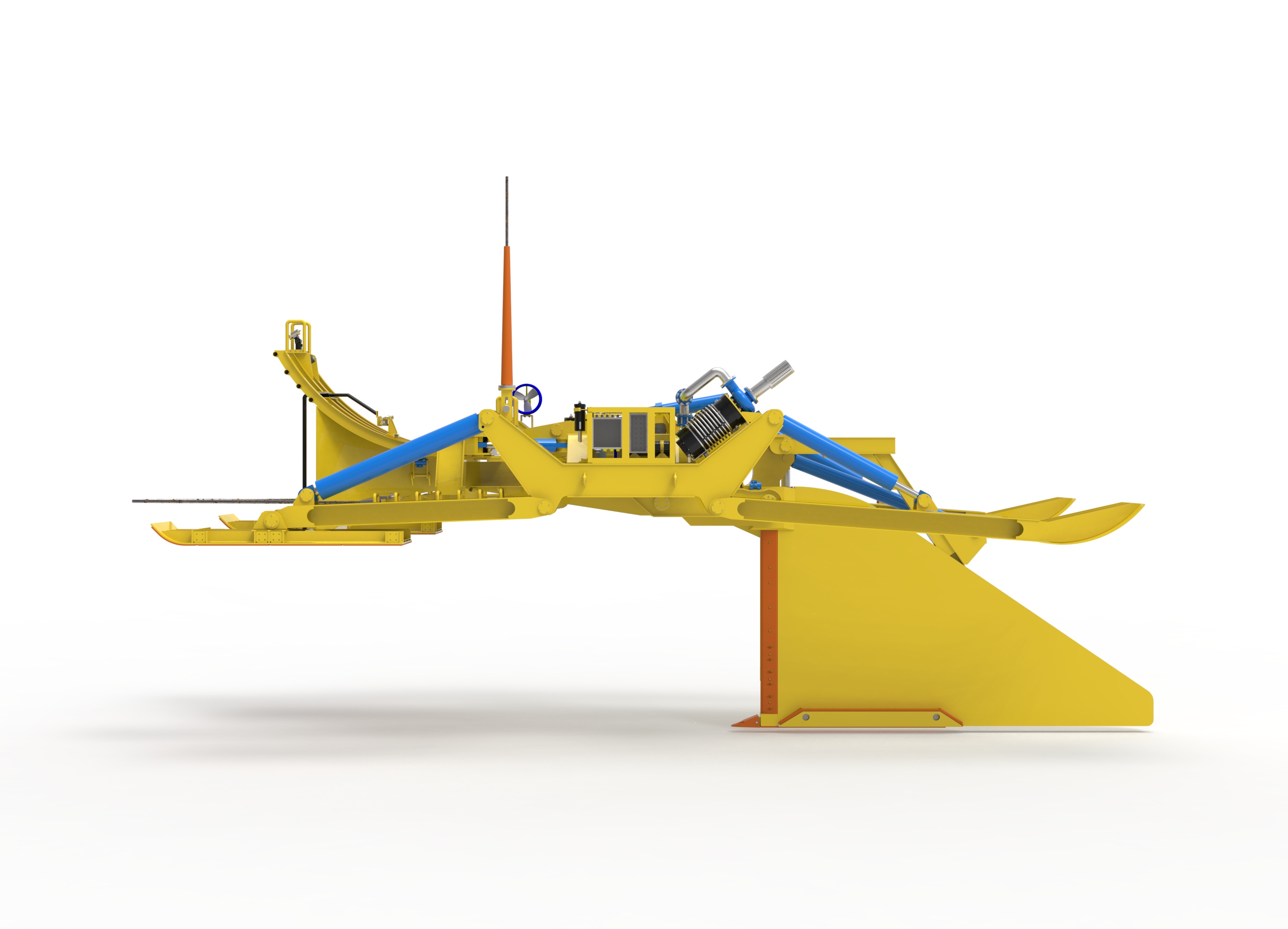

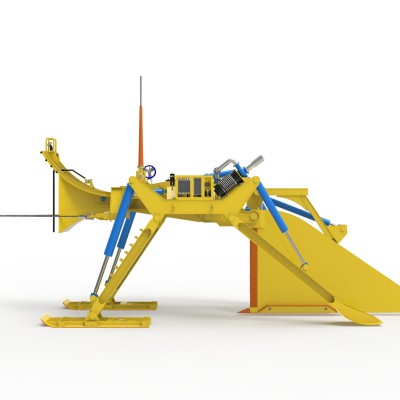

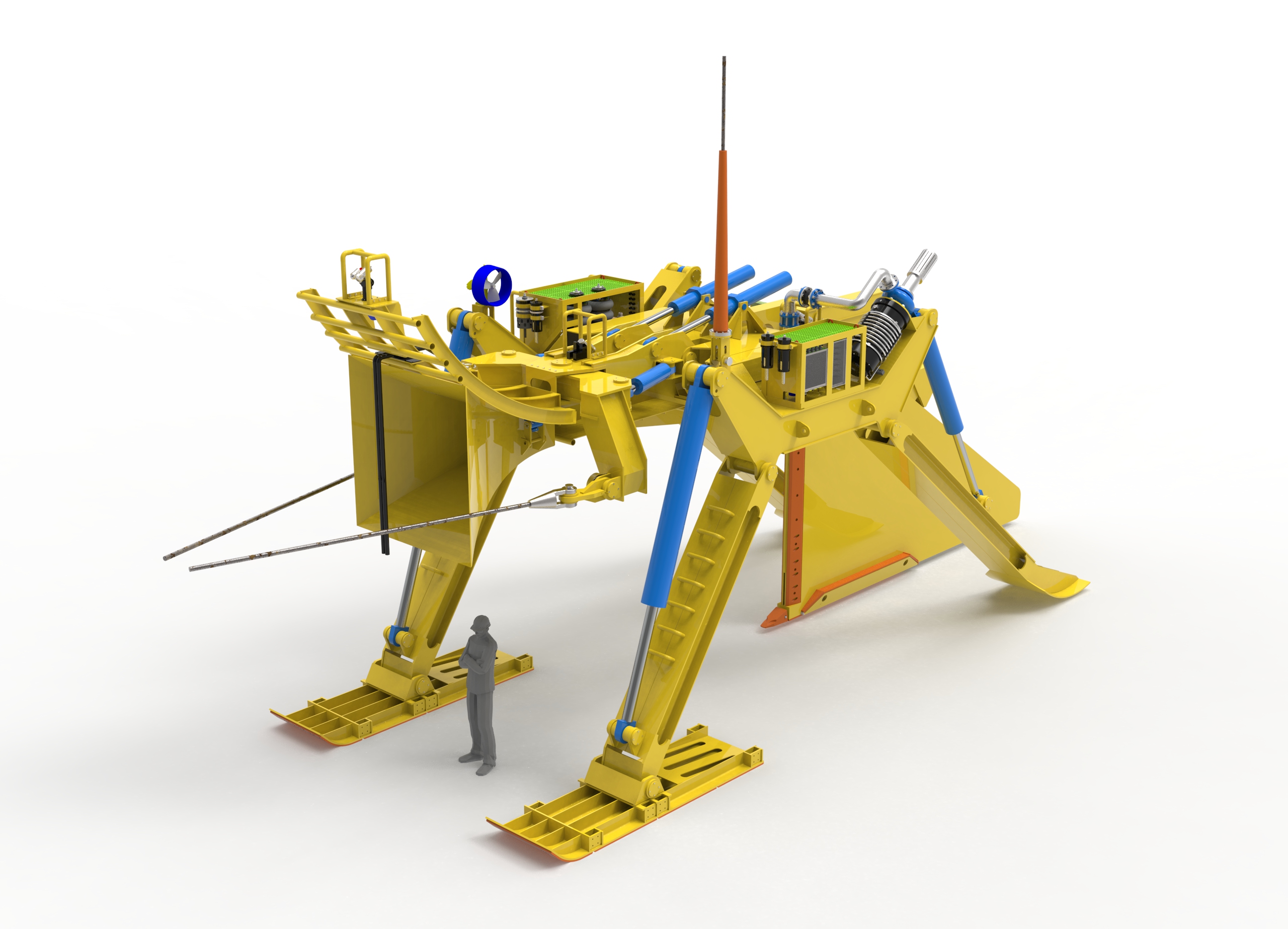

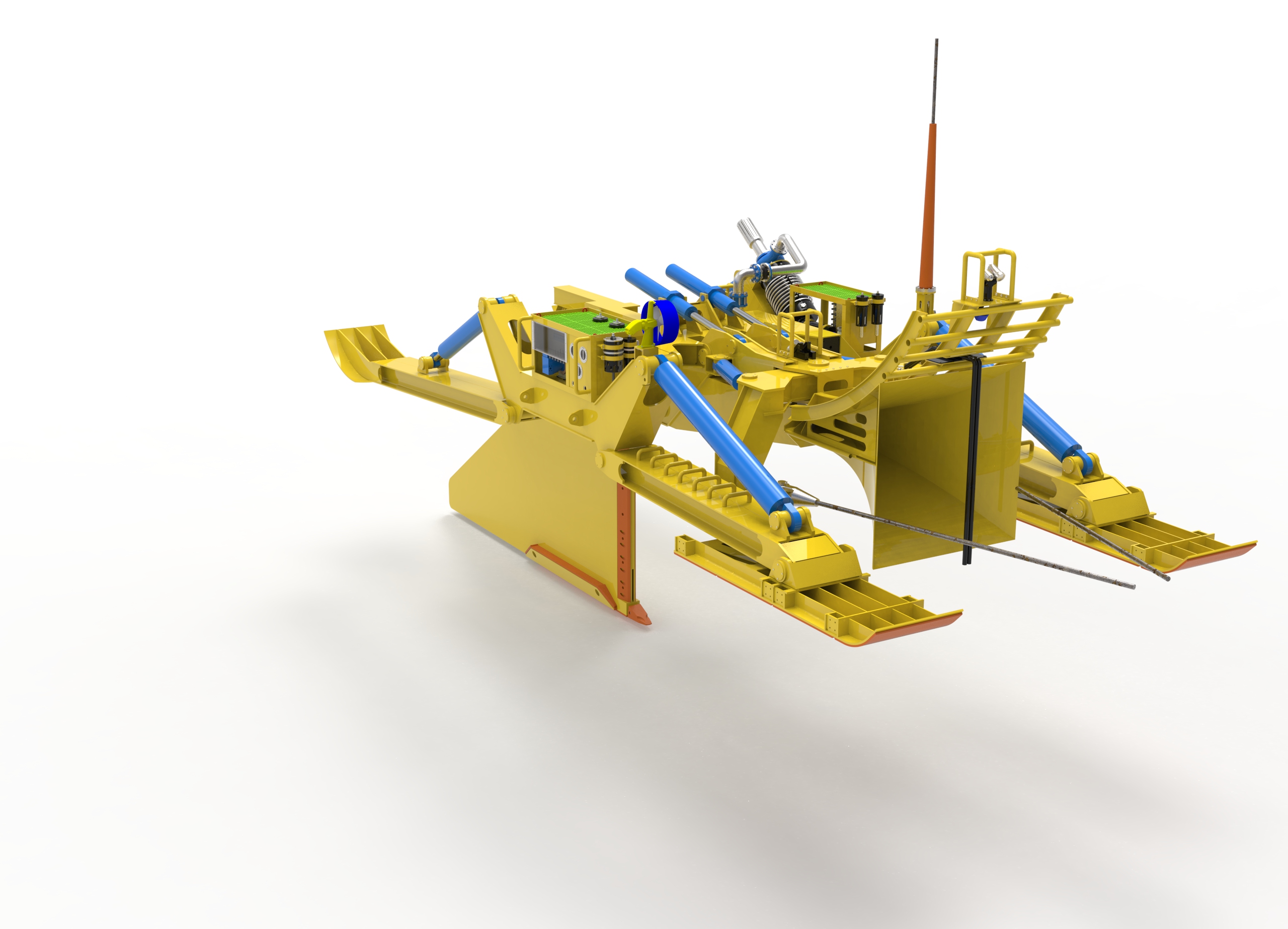

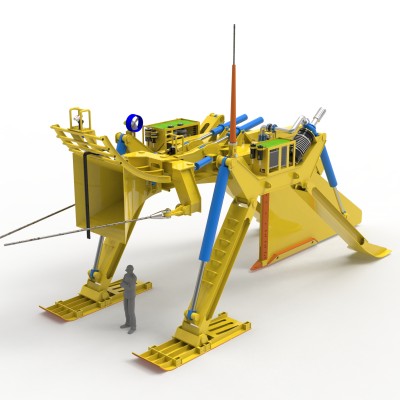

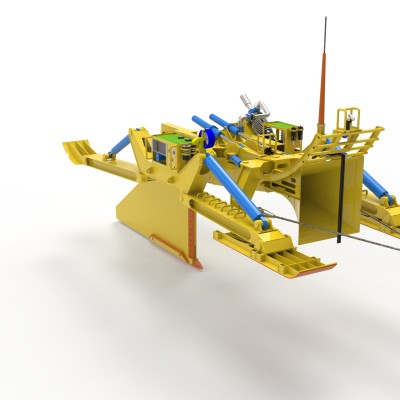

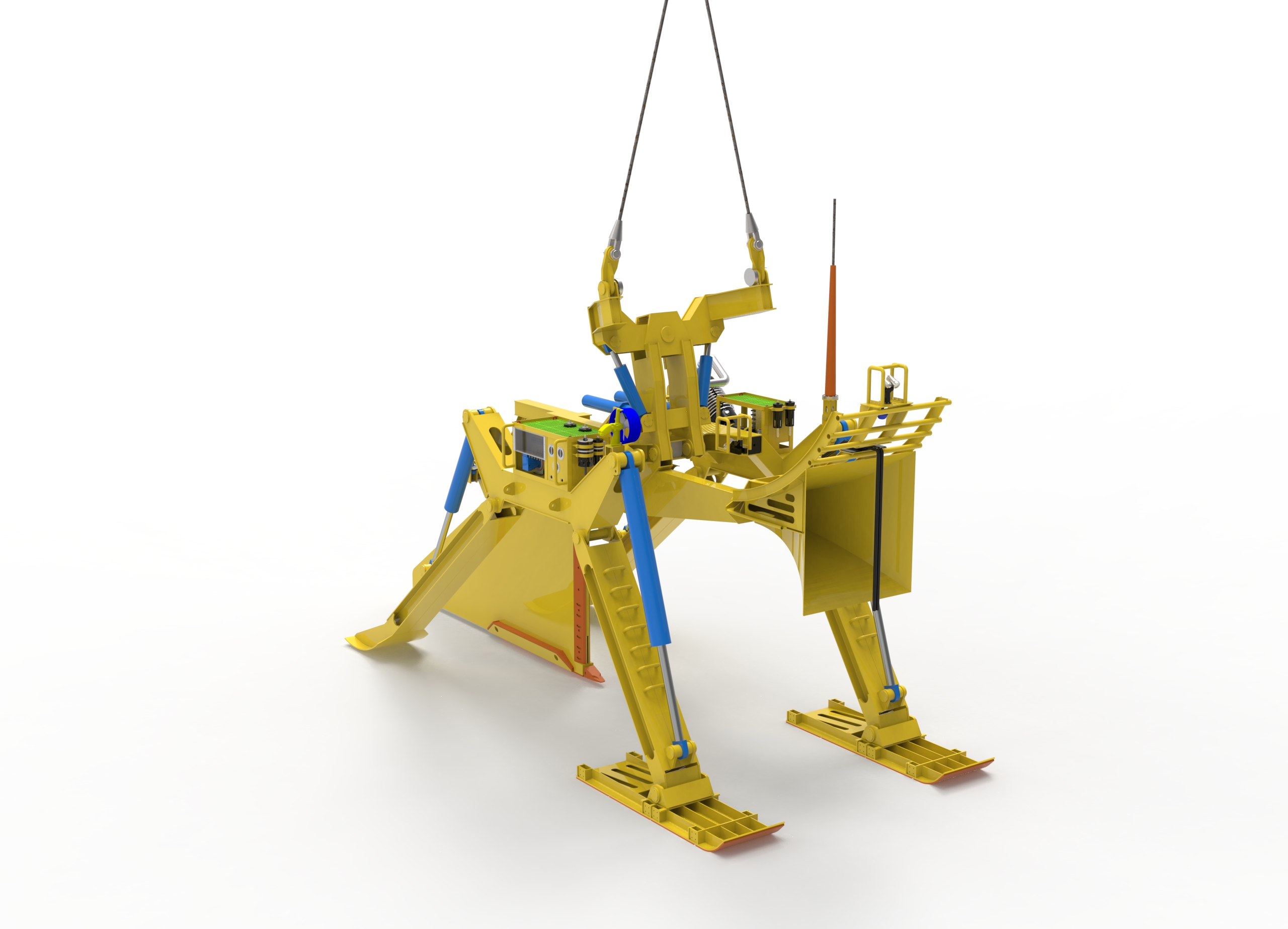

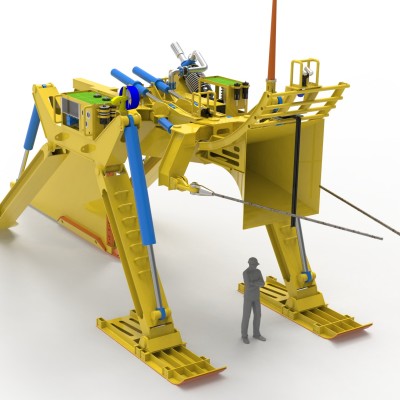

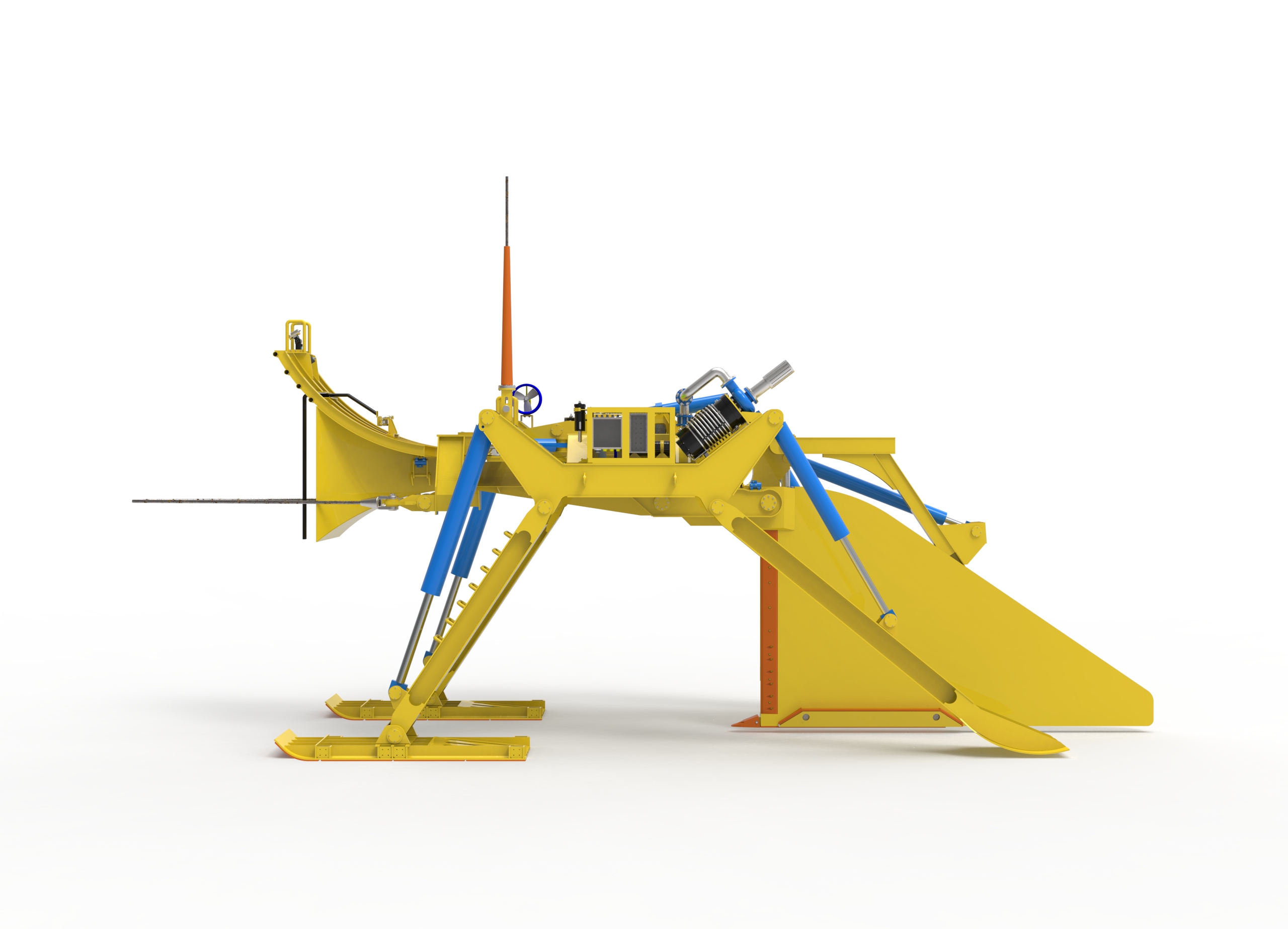

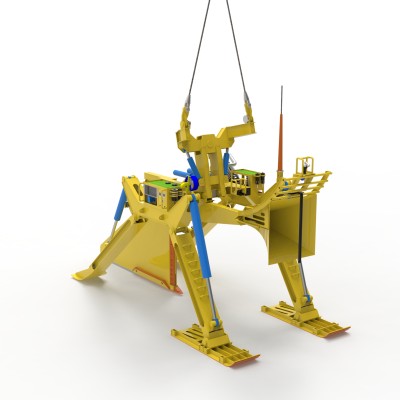

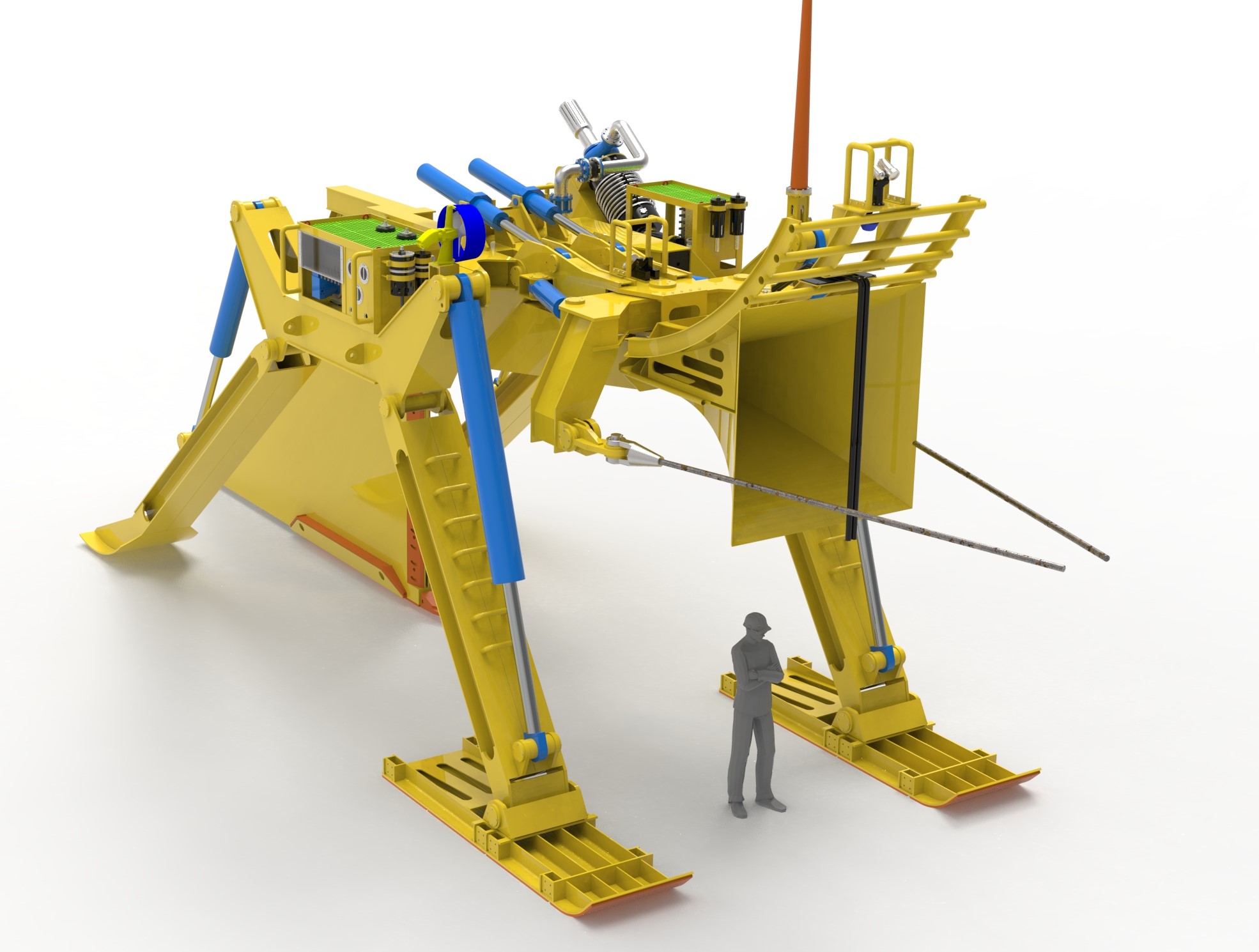

The 'Power Cable Plough' 3000 is designed to exceed the current market power cable
plough specifications while still providing all the typical functions expected from a
modern cable plough arrangement
The PCP3000 package includes our signature cost effective combination of easy to source
and repair steel plus off-the-shelf components from suppliers with outlets worldwide. As with all our systems, our 'open source' approach to structural drawings provides operators
with construction drawings for commonly damaged items such as skids and camera
cages so spares can be fabricated locally
The PCP3000 is intended to include everything needed for power cable ploughing and a
little more

For more information and contact details: https://screaton.co.uk/trenching-systems/

GENERAL
• Depth rating 500m
• Weight in air 40Te
• Max. tow load 130Te Nominal/ 150Te Peak
• Installed power 275kW (25kW HPU, 250kW Jetting)
• Dimensions 13.1m (L) 5.1m (W) 5.9m (H)

PERFORMANCE
• Trench depth 0 to 3m variable
• Cable diameter 20mm to 200mm
• Min bend radius 4m
• Steering +/- 15 degrees

MECHANICAL
• Replaceable wear parts (standard CAT parts)
• Removable share, HPU cage, POD cage
• Bolted bellmouth for project requirements
• Hydraulic tipping trough and lower bellmouth
• Stainless steel valve tanks and junction boxes
• Stainless steel hard piping for hydraulics
• Removable share 'ramps' for increased trenchin g stability
at deeper trench depths

SURVEILLANCE AND INSTRUMENTATION
• 2 x PTZ HD cameras, 1 x static HD camera
• Obstacle avoidance sonar, depth measurement an d
gyrocompass
• Tow load and angle instrumentation
• Product load instrumentation
• Product 'feeler' arms in bellmouth for product position

JETTING
• 250kW dedicated jetting via removable nozzles
• 600m3/ hr @ 120m, 12 Bar
