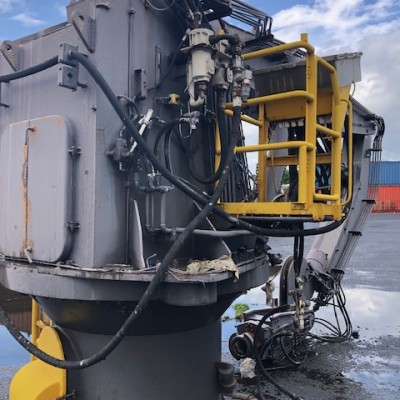

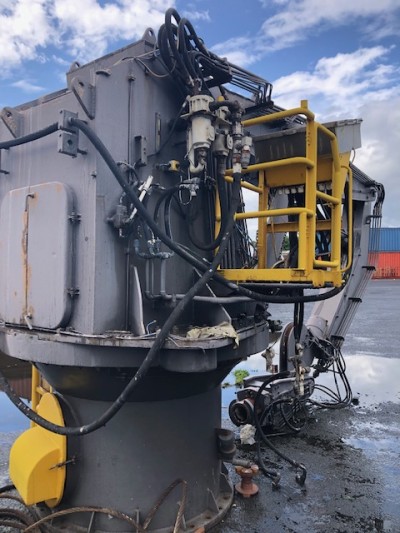

Ferri Electro Hydraulic Knuckle Boom Crane

LIFT CAPACITY AT THE MAXIMUM RADIUS=10 m……........................8500 daN

MAXIMUM LIFT CAPACITY AT RADIUS= 8 m..........................…..…….10000 daN

MAXIMUM REACH……………………………………………………………….10 m

MINIMUM REACH..................................................................................................3,9 m

LIFT/LOWERING SPEED AT MAXIMUM CAPACITY= 10 t….......…........ 30m/min

LIFT/LOWERING SPEED AT CAPACITY = 5 t...........……..............…......... 60m/min

CONSTANT TENSION MODE MAXIMUM SPEED………………………...90m/min

CONSTANT TENSION MODE CAPACITY….……………………....500  1000 daN

SLEWING SPEED……..........................................................................................1 r.p.m.

TOPPING TIME PRIMARY BOOM........................................................................... 30”

TOPPING TIME SECONDARY BOOM.................................................................... 20”

MAXIMUM DINAMIC HEEL........................................................................................8

MAXIMUM DINAMIC TRIM......................................................................…...............4º
