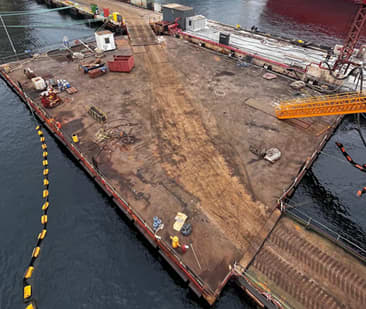

Flat Top Barge 35m x 25m

35m x 25m Concrete Flat Top Barge for sale

• She is designed to handle moving loads of up to H30-S24 (30 tons) vehicles.
• She is constructed to be secured to dock piles or bollards but can also be fixed using a mooring system if needed.
• The barge has a framework system with transverse and longitudinal bulkheads.
• The bottom deck, upper deck, outer bulkheads, and watertight tank bulkheads are 120 mm thick, while the water-permeable bulkheads are 100 mm thick.
  The outcrop for the fender attachment at deck level is 300 mm thick.
• Additionally, to protect the upper deck from external factors, a 100 mm fiber-reinforced overlay concrete has been applied.
