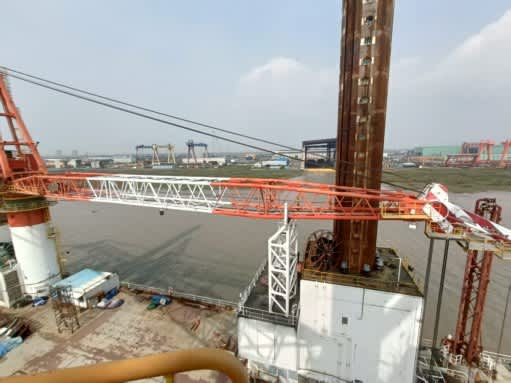

200T Offshore Wind Turbine Crane

Manufacture 2016

Maker GENMA

Technical Data Item                Main Hook       Aux. Hook

Safety Working Load (SWL)     See Load Curve  See Load Curve

Max. Working Radius              54 m            59 m

Min. Working Radius              11 m            13 m

Lifting Speed at Full Load      0~6 m/min       0~17 m/min

Lifting Speed without Load    0~10 m/min      0~30 m/min

Lifting Height - Above Main Deck 65 m         70 m

Lifting Height - Under Main Deck 20 m         20 m

Luffing Time without Load           ~360 s          —

Slewing Speed without Load     0~0.4 r/min     —

Slewing Sector                360° without limitation —

Max. Allowable Angle          See Load Curve  —

Electric Motor Data

- Model: Y355M2-4-H

- Power: 2 x 250 kW

- Power Supply: 690 V / 50 Hz / 3Ph

- Duty: S1

- Protection Class: IP54

- Insulation Class: F

- Starting Method: Soft Start

Note: Movement Velocity Error Range

- Hoisting: ±10%

- Luffing: ±10%

- Slewing: ±10%

Owners disembarked her from a decommissioned jackup equipment.

Inspectable on short notice.
