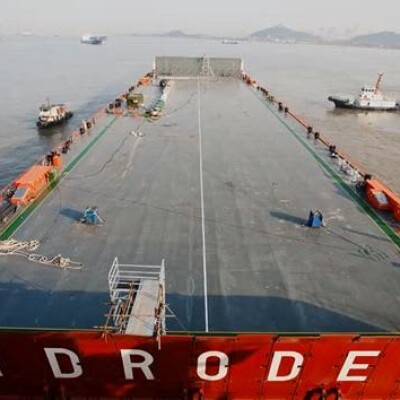

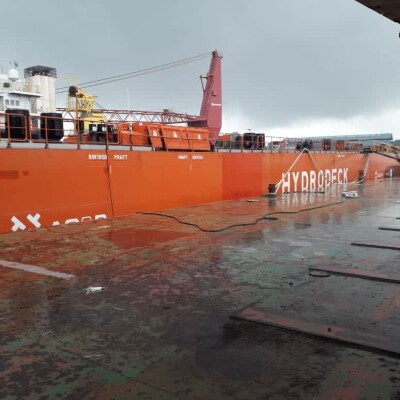

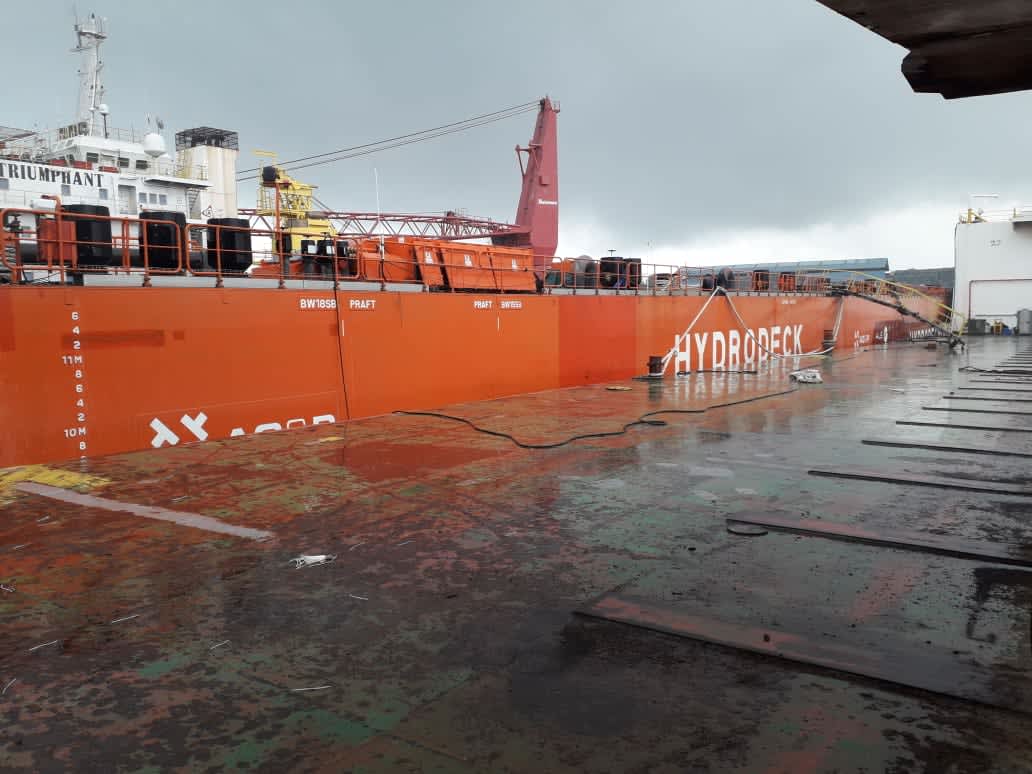

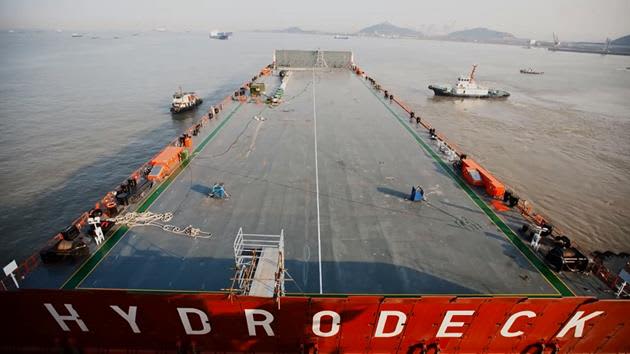

LARGE Multi Purpose Deck Barge

Ideal for moving large structures like (Offshore wind) jackets, turbines, modules and structures to be transported by SPMT's.

• Built 2014

• Size 140m x 40m x 12m; 1.7m minimum draft

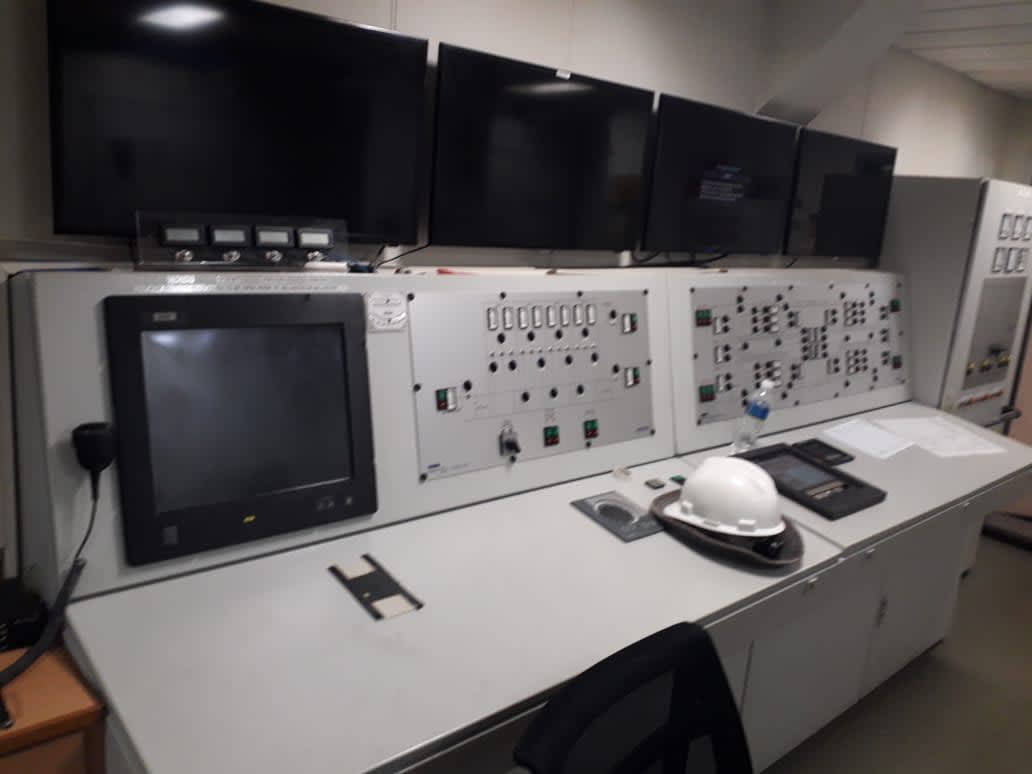

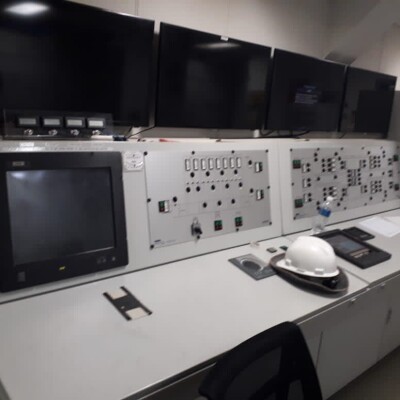

• Unique buoyancy control system, using water and air ballasting

• 100% system redundancy

• 24,000m3/hr capacity water ballast system

• 12,000m3/hr capacity air ballast system

• Extreme tidal variation handling up to 10m • 20t/m2 uniform deck load, with heavy bulkheads and strongpoints

• 5,600m2 deck space • 20,000t combined cargo capacity

• Designed for maximum self-propelled modular trailer (SPMT) loads and skidding in excess of 10,000t

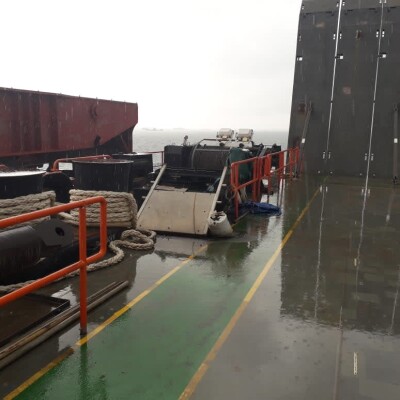

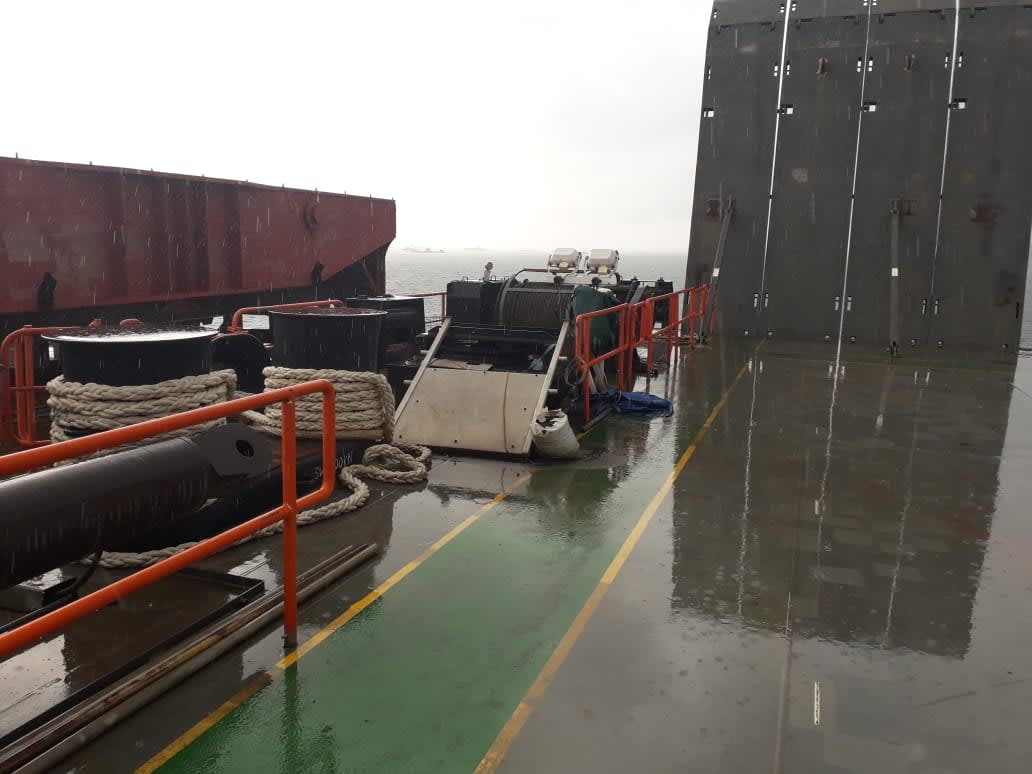

• Integrated mooring and hydraulic roll-on/roll-off (Ro-Ro) ramp system

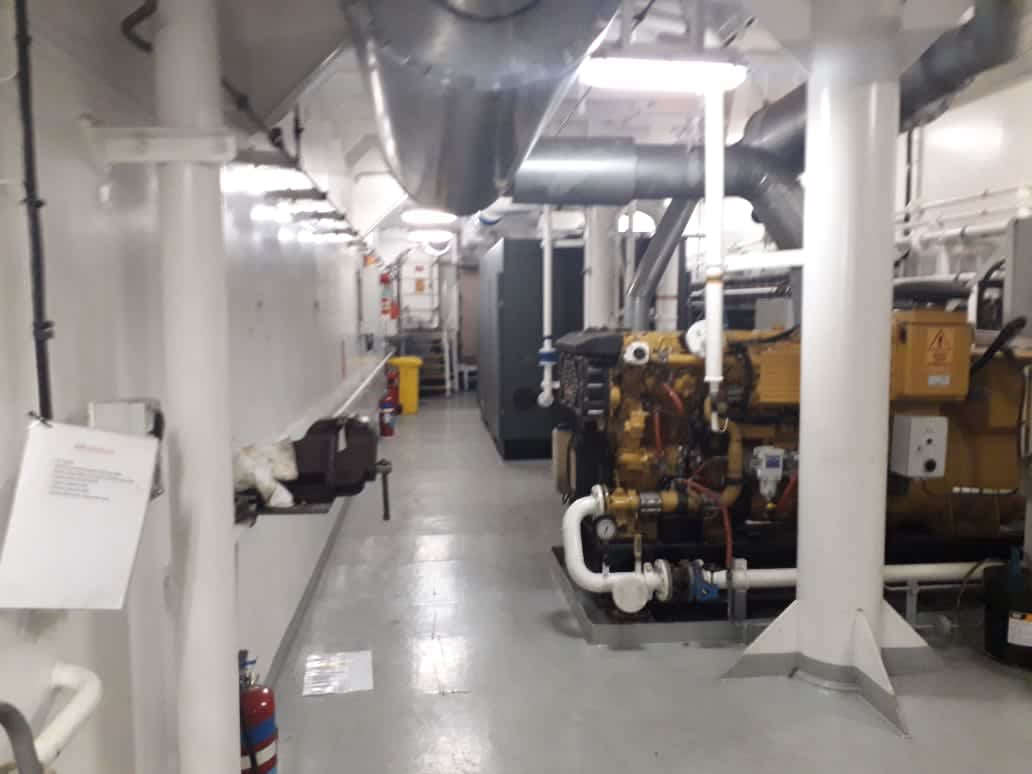

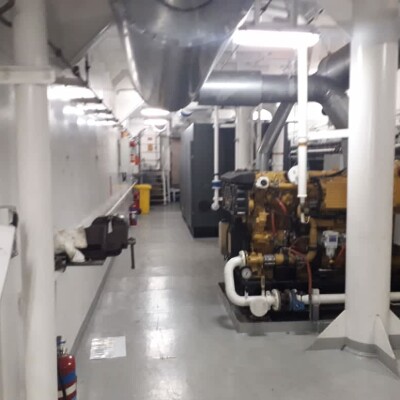

• On-board crew day facilities, power generation, hydraulics and fire safety systems

Connect to learn more and/or plan a visit!
