Launch and recovery system (LARS) A-frame and towing winch with 30T lifting capacity for SALE

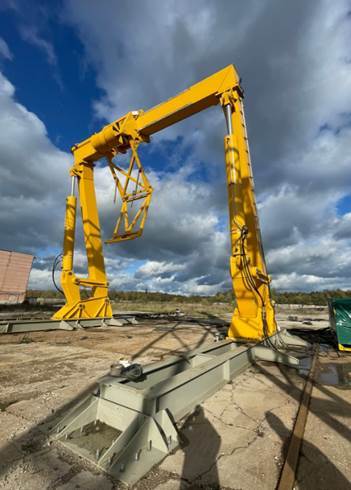

30T A-Frame

Description: Hydraulically powered welded A-frame with guide drum for towing rope Dynamic Amplification factor: 2.5

SWL: 30 tons

Dimensions: L=22600mm   W=13650mm  H=13370mm

Weight: 76400 kg

Deployed reach: 8200mm Distance between legs: 11550mm 60T SWL towing winch

Description: Hydraulically driven winch for towing, lifting and lowering Dynamic Amplification factor: 2.5 SWL: 60 tons

Weight: 20000 kg (without wire rope)

All designed in accordance with DNV.
