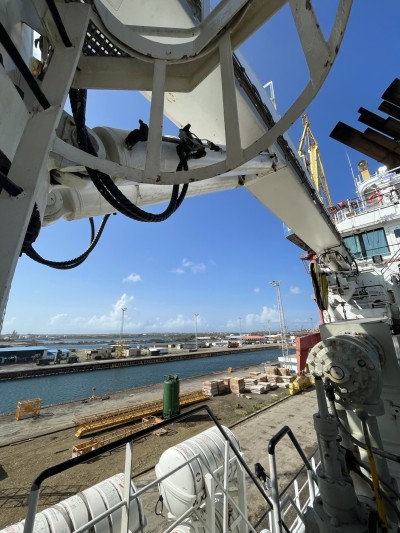

ODIM ABAS SUBSEA ACTIVE HEAVE COMPENSATED (AHC) CRANE KDE400-10

ODIM ABAS PEDESTAL SUBSEA AHC CRANE KDE400-10 (Active Heave Compensated)

Crane type: KDE400AHC

YOM: 2010, Class certificates available

Safe Working Load on Deck: 20 T

Safe Working Load in sea: See Load Chart

Safe Working Load personnel: 1T

Max working radius: 20 m

Min working radius: 3, 8 m Max working depth: 600 m Wave amplitude / period AHC: +/-3,5m -10Sec.

Main pumps capacity: 2x450 L/min Emergency pump: 1x70 L/min

Accumulators: 4x50 L Idle hoisting speed, with 10T SWL 120 m/min SWL hoisting speed: 75 m/min

Personnel hoisting speed: 53 m/min

Slew sector: 400° Slew speed: 1,0 rpm Hell and Trim: 5°+2°

Electric data main pumps (x2) Type: Y2EZ 315 L2-4

Voltage: 690V Power / Duty: 242,1kW (S1-100%)

Operating hours: 1106

Total weight crane: 78400 kg.
