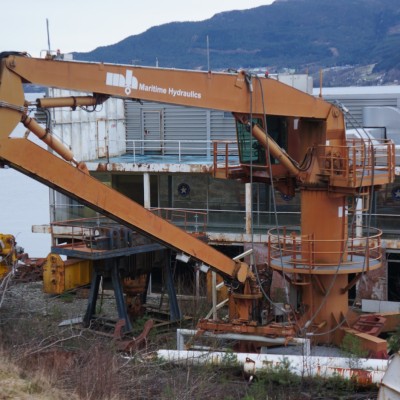

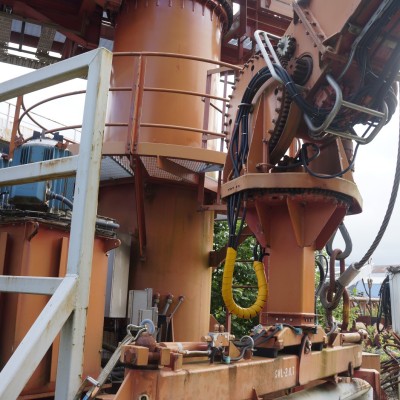

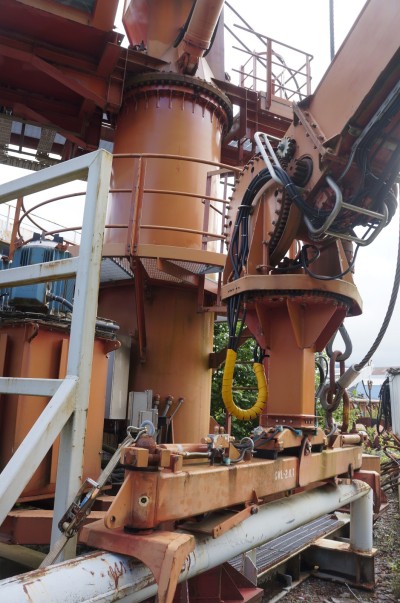

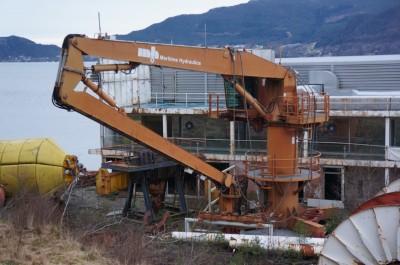

USED Crane, Offshore, Pipe-handling for SALE

2 Te SWL - 23.2 m boom

Pipe handling Crane, Handles up to 15 m long, from 5 1/2" to 13 3/8" OD tubulars, range from 2.3 m to  23.2 m radius.
Hydraulic Power Unit (HPU)
The HPU consists of two el. motor/ pump units.
The capacity for one unit is 240 I/min. at 230 bar (at 60 Hz) (theoretical)
Open loop system
Electric Main Motors:
 2 Off ABB M2AA 255 SMD4 VI, Three-phase squirrel, 4 cage, 4 poles
Power  2 x109 kW, 690 V, 60 Hz, 1800 RPM, IP55
Pumps:
Mannesmann Rexroth, A10VSO 140DRG
Variable axial piston, 140 cm3/rev.
Crane dimensions:
Outline size: 8000 x 6000 x 10000 mm
Weight  approx. 45 T e
